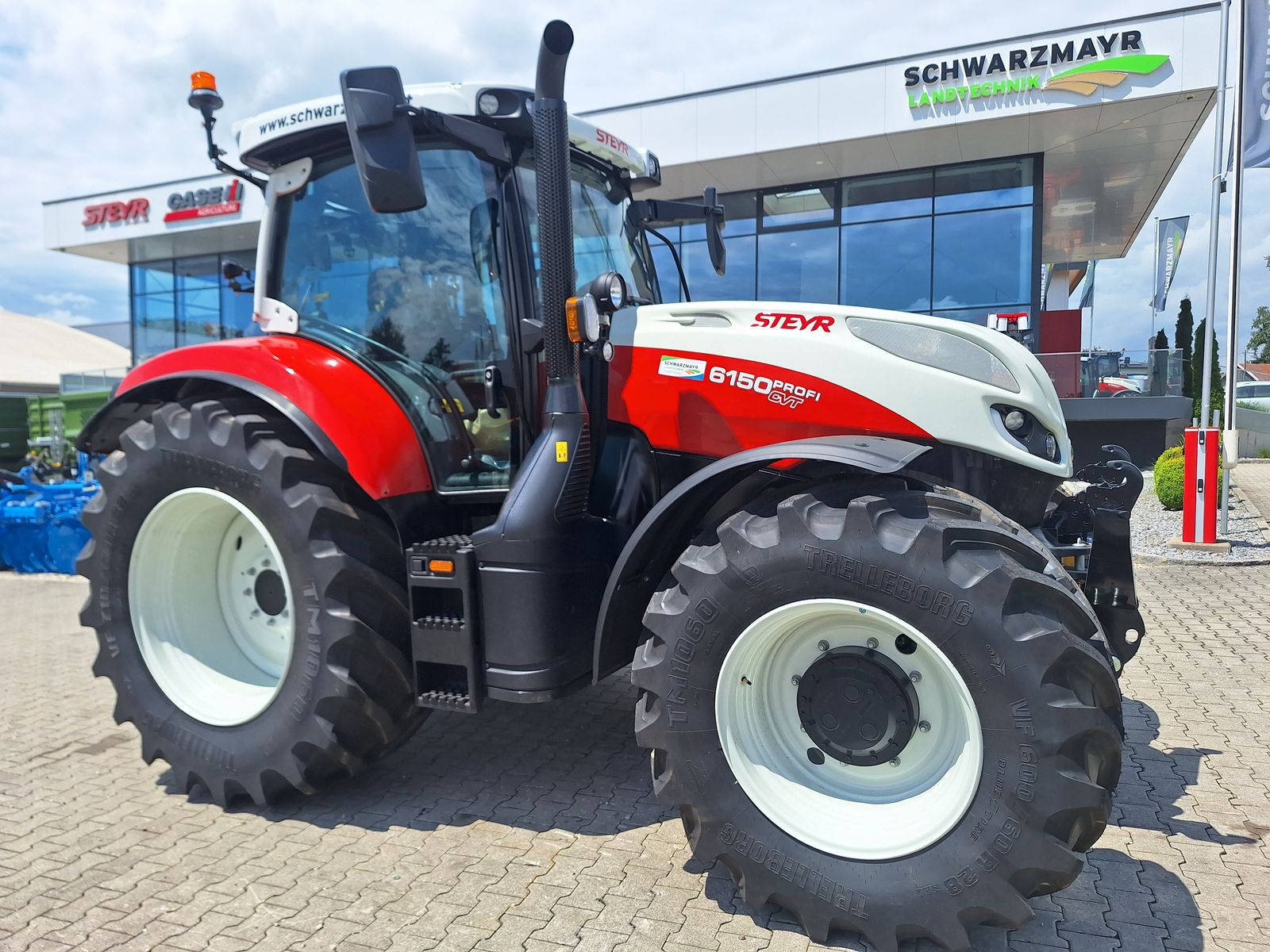

Steyr 6150 Profi CVT (Stage V)

No. 71314
145 PS standard power and 175 PS with boost
Common-rail engine with 6.7 ltr displacement, 6 cylinders, 740 Nm max. torque, and Euro 5 emissions standard
Continuously variable transmission (CVT) with 50 km/h Eco mode at 1,750 engine RPM
Standard equipment with the EVOLUTION package:
- 263-liter fuel tank + 39-liter AdBlue tank without tank protection
- 140 AH battery with electronic battery disconnect switch
- 150 A alternator
- CVT continuously variable transmission, 50 km/h ECO mode
- Heavy-duty flanged axle
- 3-speed rear PTO 540/540E/1,000 rpm with manual speed selection, PTO stub with 6 teeth installed + 21 teeth included
- External controls for rear lift, PTO, and a control unit on both rear fenders
- Oil-cooled long-life brake discs
- Spring-loaded and braked front axle, Cat. 3.5
- Adjustable steering wheel and telescoping steering column
- Electronic joystick (3 buttons)
- 3 electric rear control units (configurable and color-coded)
- Pressure-free return
- Mechanical top link
- Telescopic lower link stabilizers
- Trailer hitch with automatic 38 mm drawbar
- Pneumatic trailer brake system—two-line
- Grammer Dual Motion air-suspension driver’s seat with fabric upholstery, swiveling backrest, seat belt, and passive ventilation
- ICP control panel in armrest
- Mechanical cab suspension
- Manual air conditioning
- Work light package 2 (high roof): 12 additional LED work lights on the roof (6 at the front, 2,000 lumens each; 6 at the rear, 2,000 lumens each)
- 2 large telescopic rearview mirrors with wide-angle inserts
- High-roof cab with panoramic window (base paint finish)
- Wide rear fenders without fender extensions
- Dynamic front fenders 480 mm
- Maximum allowable gross weight: 10,500 kg
Additional equipment:
- Equipped with front tires VF600/60R28 on fixed rims
- Equipped with rear tires VF710/60R38 with fixed rims
- With Trelleborg tire brand selection
- With 540 mm dynamic front fenders
- With wide rear fenders with fender extensions
- Equipped with 4 electric
