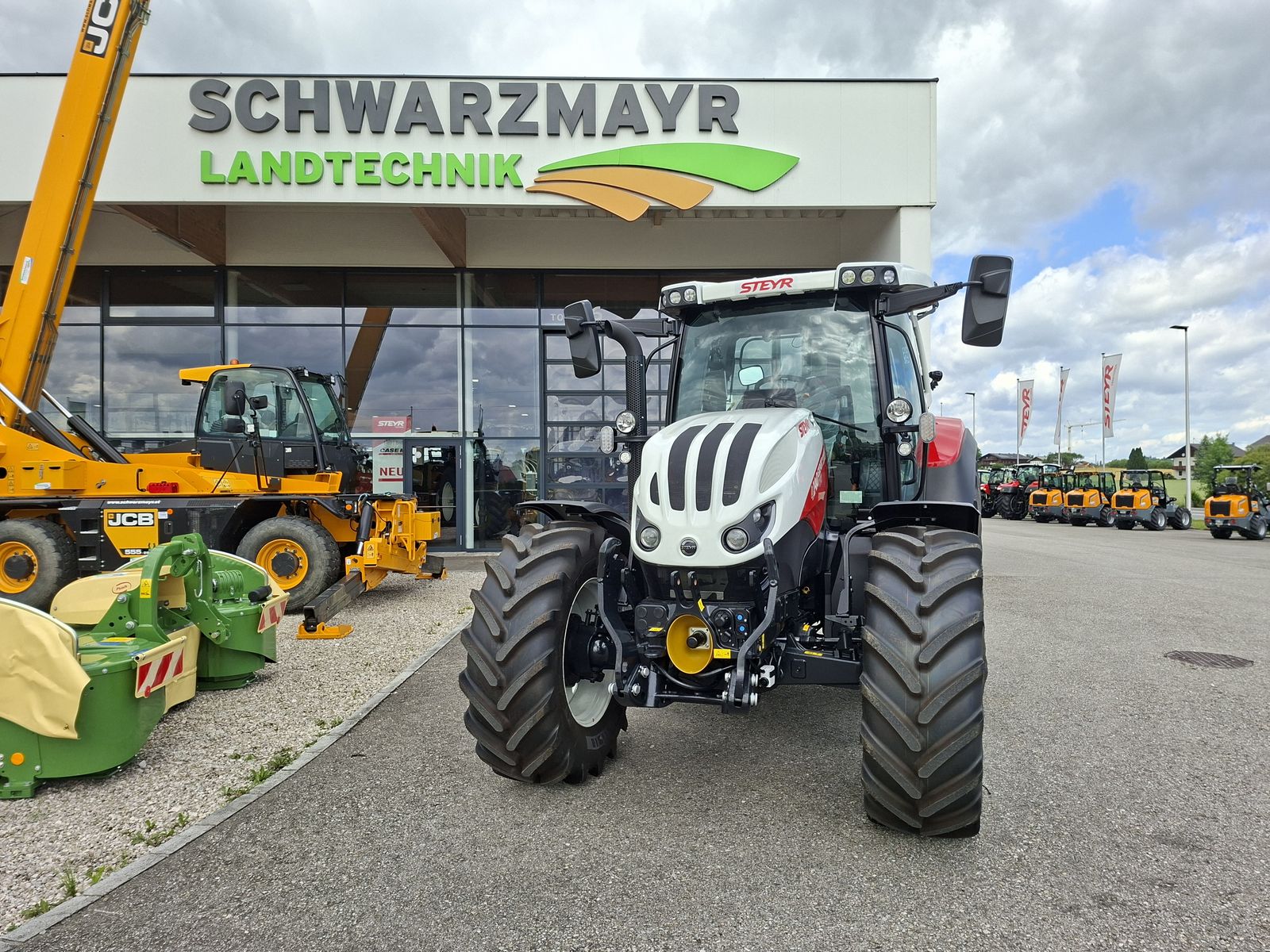

Steyr 4140 Expert CVT

No. 71407
Common Rail turbo diesel engine with intercooler and 140 PS
with a displacement of 4,485 ccm and Stage V emissions standard
Standard equipment with the EVOLUTION package:
- Preheating system
- 140 Ah battery with electronic battery disconnect switch
- Stage V engine with viscous fan
- 120 A alternator
- CVT continuously variable transmission, 40 km/h ECO
- Flanged axle
- 3-speed rear PTO (540/540E/1,000 rpm) with manual speed selection
- External controls for rear lift and PTO on both rear fenders
- Standard brake discs
- Class 1.75 spring-loaded front axle with electrohydraulic differential lock
- Height- and tilt-adjustable steering column
- Hydraulically operated rear-axle differential and all-wheel-drive clutch
- Axial-piston variable-displacement pump with a flow rate of approx. 113 l/min
- 3 electric rear control units, color-coded
- Electronic lift control with 2 external lift cylinders (5,500 kg max. lifting capacity)
- Cat. 2 rear lift with mechanical top link, mechanical lower link stabilizers, and ball mount
- Height-adjustable trailer hitch with automatic 38 mm drawbar pin
- Pneumatic trailer brake system – two-line
- Grammer Dual Motion air-suspended driver’s seat with fabric upholstery, swiveling backrest, seat belt, and seat heating
- Mechanical armrest adjustment
- Extended instrument cluster on the A-pillar
- Radio preparation with speakers and antenna
- Multicontroller armrest
- Passenger seat with seat belt
- Manual air conditioning
- Standard steering wheel
- 2 halogen headlights and 2 halogen work lights in the front hood
- 8 LED work lights on the low-roof cab + 2 LEDs on the front of the cab roof + 2 LEDs on the rear of the cab roof + 2 LEDs on the A-pillar + 2 LEDs on the rear C-pillar (1,950 lumens per light)
- 2 large telescopic rearview mirrors with wide-angle inserts
- Low-roof cab with panoramic window (base paint finish)
- Rear fenders with fender extensions
- Dynamic front fenders, 480 mm
- EasyTronic basic headland management
- Monitor mount on the right
