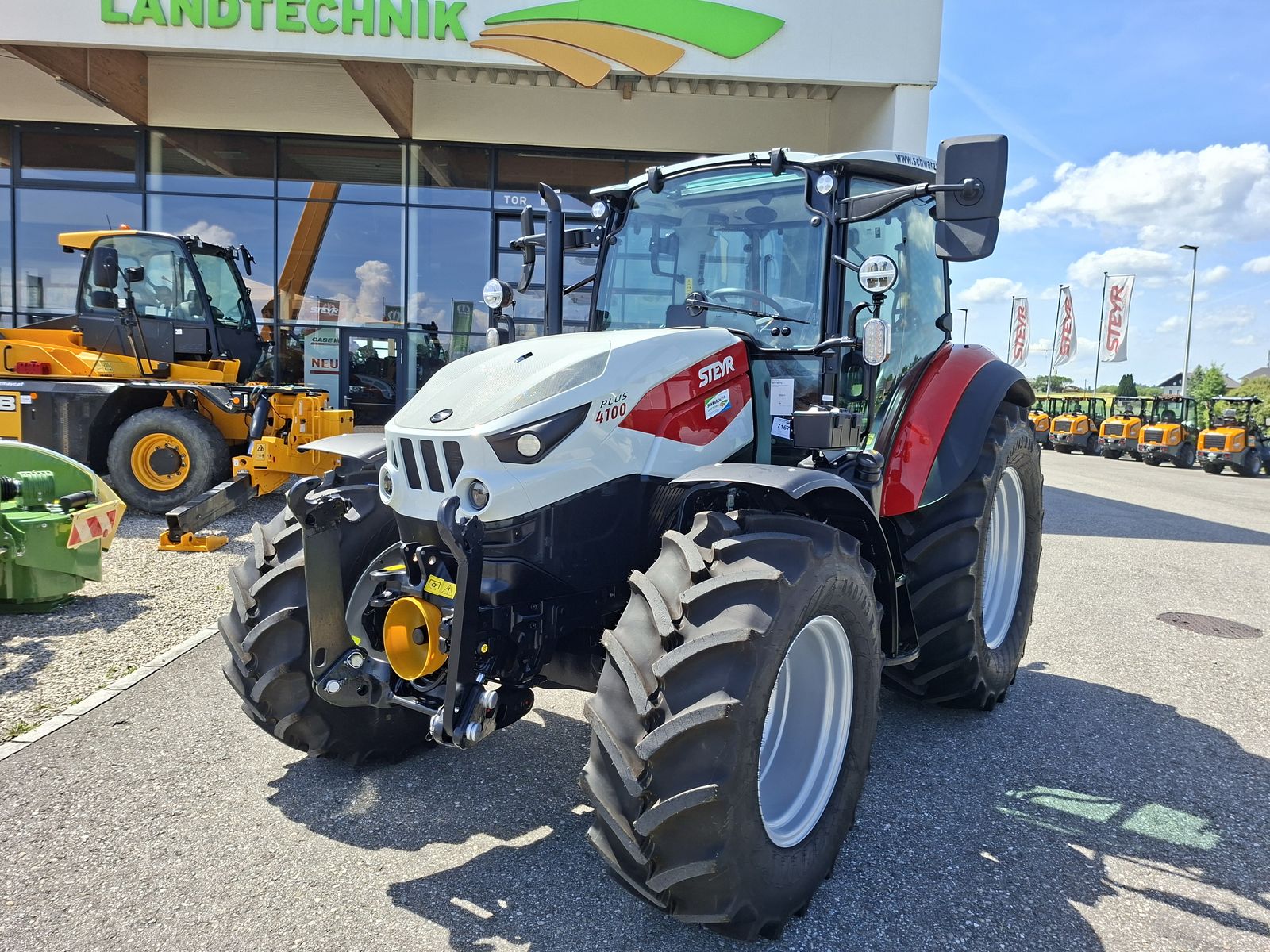

Steyr 4100 PLUS

No. 75621
4-cylinder common-rail turbo diesel engine with intercooling, 3.6 liters displacement, Stage V emissions standard
100 PS rated power with 450 Nm of torque

Standard equipment:
- Fuel tank: Diesel 130 l, AdBlue 10 l
- Visco fan
- S-Control 2 24x24 transmission with electrohydraulic powershuttle
* Pre-equipped for crawler gear
* 2-speed underload shifting
* 40 km/h at reduced engine speed
* Electric drive clutch actuation
* Hydraulic PTO clutch
* S-Stop II – 3-position adjustable
- 3 PTO speeds: 540/540E/1,000 rpm
Includes AUTO function
Includes adjustable start-up behavior
- 1.0 HD all-wheel-drive front axle with hydraulic differential lock; permissible front axle load 2,900 kg; flange width: 1,584 mm
- 3 rear control valves, 2 of which have a float position
- 64 l/min pump for working hydraulics, including a 36 l/min steering pump
- EHR with external lift cylinders, Category 2 lower link hooks, 4,700 kg lifting capacity
- External controls on the fender for rear lift and PTO
- Pre-equipped for front lift and front PTO
- Scharmüller automatic trailer hitch with 38 mm bolt, height-adjustable, remote control from the cab
- Air-suspension seat, fabric upholstery, armrests, and seat belt
- Comfort cab
* Air conditioning
* Dashboard with digital display
* Fixed windshield & pop-up side windows
* Panoramic roof window with sunshade
* Passenger seat with seat belt
* Radio
- 8 halogen work lights (2x on engine hood, 2x on front roof, 2x on rear roof)
- Telescopic mirrors
- Exhaust on the right A-pillar, U-shaped
- Toolbox
Additional equipment:
- Rear tires: 540/65R30 on fixed rims
- Front tires: 440/65R20 on fixed rims
- 3x rear control units, 2 of which have a float position, 4x rear
