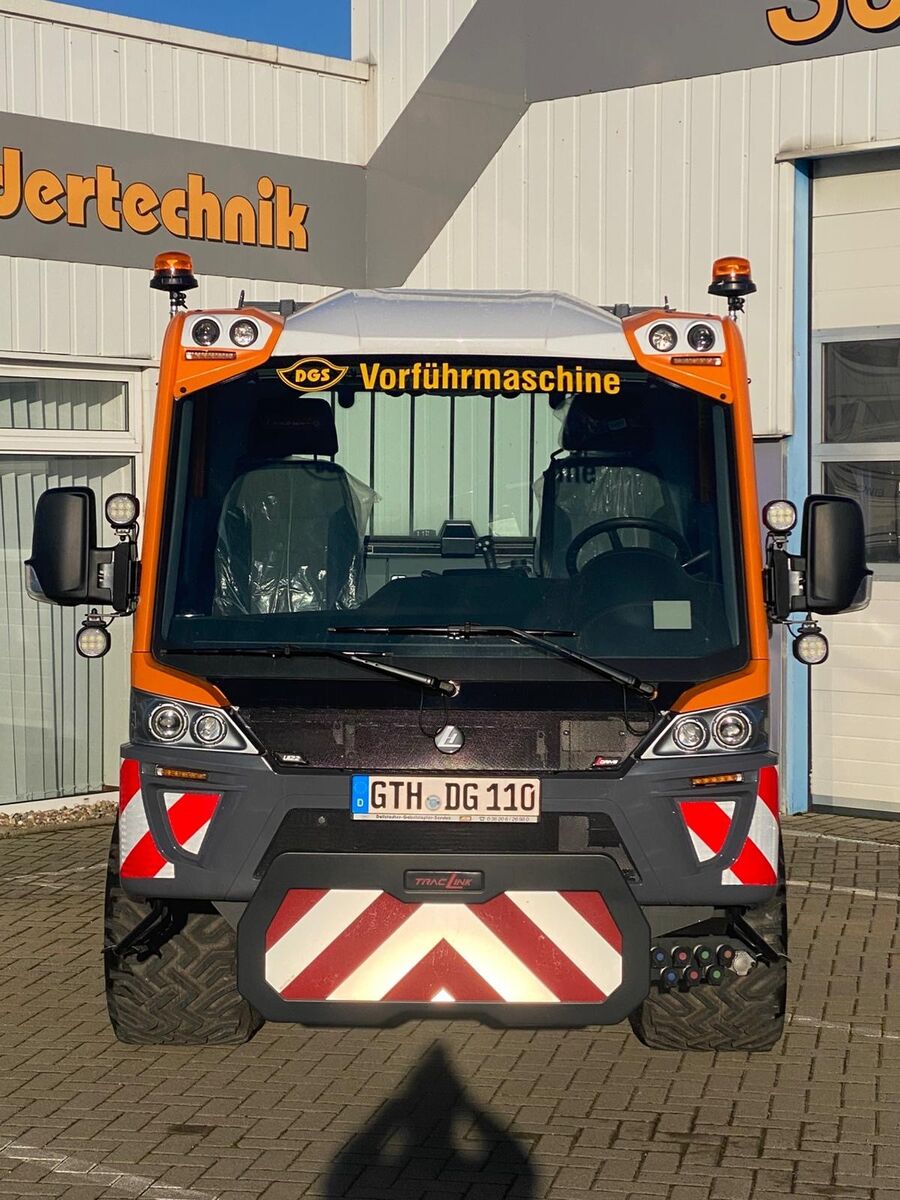

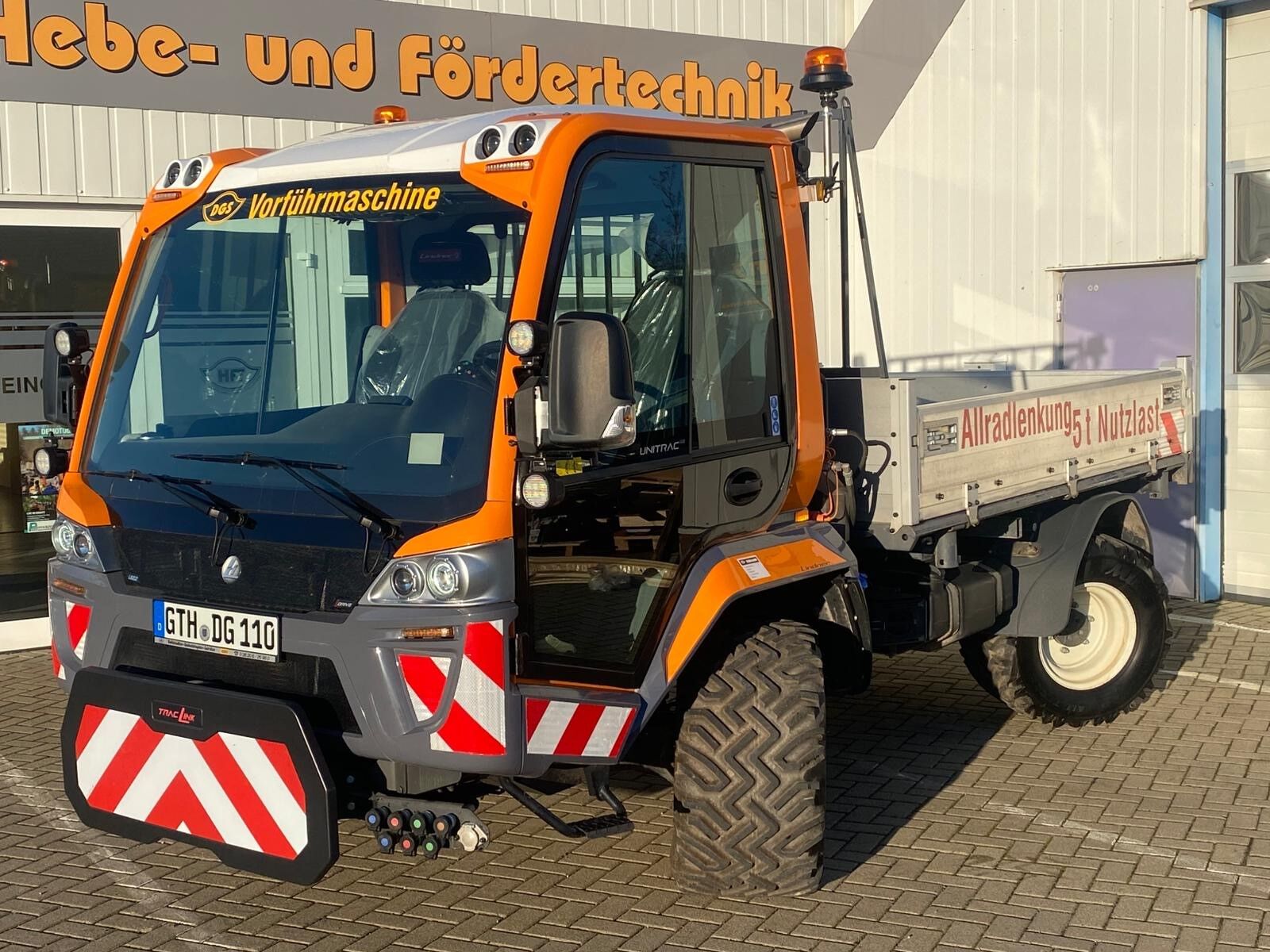

Lindner Unitrac 122 LDrive

Lindner Unitrac 122 LDrive

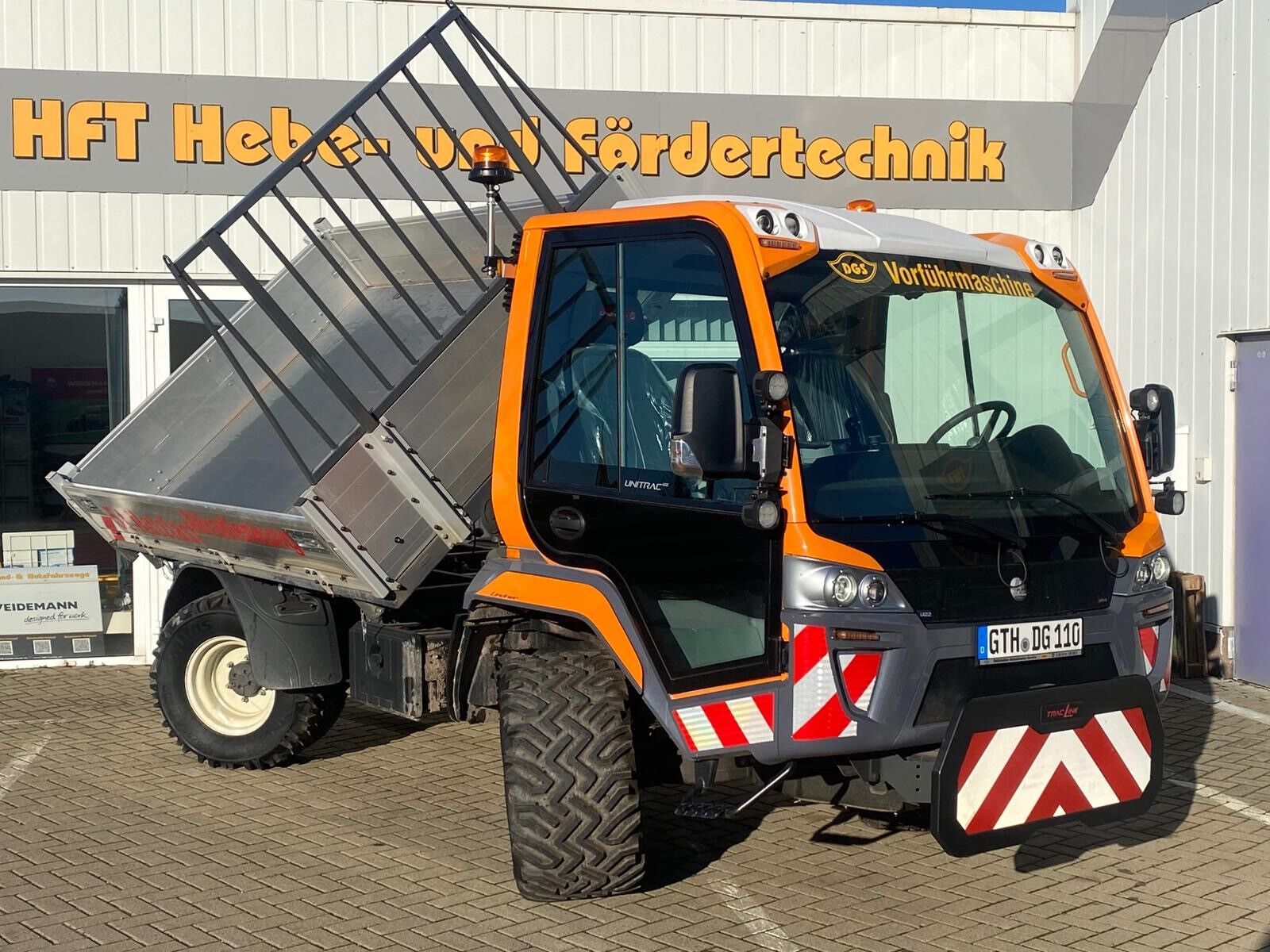

Demonstration model with three-way tipper

-Base model-
. TILTABLE COMFORT CAB:
. Hydraulic rubber-mounted panoramic comfort cab with doors (OECD-certified)
. Tiltable to the side
. Deep-drawn, heated panoramic windshield
. Side mirrors with integrated turn signals, electrically adjustable and heated
. Turn signals at top and bottom operated via light switch
. 2 windshield wipers with intermittent setting
. Sun visor
. Radio console with radio preparation
. 12-volt cell phone socket
. Turn signal reset
. Heater
. 4-speed blower
. Door locks
. Ergonomically shaped control panel
. VDO central information board & IBC monitor
. LDrive armrest on the LDrive comfort air seat
. Interior lighting
. Comfort entry
. Full-LED headlights including LED daytime running lights and upper headlights
. ENGINE:
. 122 hp (90 kW)
. 4-cylinder PERKINS Syncro turbo diesel engine with common rail injection
. Particulate filter/SCR/AdBlue 20 L
. 3,600 cc displacement
. 500 Nm at 1,500 rpm
. STAGE 5
. Water-cooled
. Dry air filter with visual maintenance indicator
. 12-volt electrical system
. 150A three-phase alternator
. Electric battery master switch
. Tank capacity: 100L diesel + 14L AdBlue
. HIGH-PERFORMANCE CHASSIS:
. Independent suspension
. Hydraulic suspension with level control
. Longitudinal differential lock and rear differential lock, electro-hydraulic at the push of a button
. Comfort suspension
. Axle load indicator for front and rear axles
. Optional: Front differential lock
. 4-wheel steering with comfort return
. TRANSMISSION:
. Lindner-ZF continuously variable transmission
. 0–40 or 0–50 km/h
. Electrohydraulic PTO clutch at the push of a button
. Rear/center PTO: 540/1000 rpm
. Optional: Front PTO 1000 rpm
. BRAKES:
. 2-circuit brake system
. Ventilated disc brakes front and rear with brake booster
. Parking brake with spring-loaded mechanism
. Optional: Eddy current brake
. 9,500 kg maximum gross vehicle weight
. HYDRAULICS:
. Multi-circuit hydraulic system with variable-displacement pump (max. oil flow 88 l/min, 200 bar, load-sensing system 45 L; available flow: 35 L)
. 2x double-acting proportional EHS control valves with
