Giant G3500 Tele

No. 69796

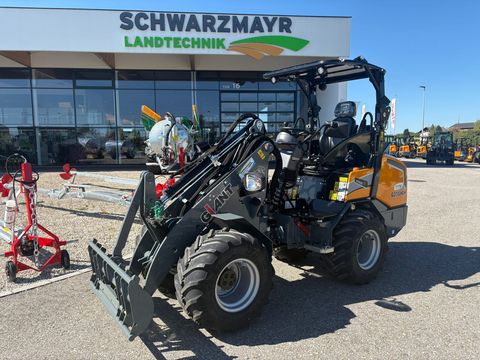

G3500 TELE Farm Loader
- Lifting height: 4,312 mm (measured at the machine's pivot point)
- Lifting capacity without additional weight: approx. 2,500 kg
- with Kubota V2403-CR-TE5B engine (4 cylinders), Stage V (DOC), diesel particulate filter (DPF)
- with engine power 66 hp / 48.5 kW
- with hydrostatic all-wheel drive
- with 14-ton planetary axles
- with electrically engageable 100% differential lock on both axles
- with travel hydraulics 112 l/min (450 bar)
- with working hydraulics 70 l/min (220 bar)
- with travel speed 0–10 km/h, 0–30 km/h (with cruise control), measured with standard tires
- with Z-kinematics
- with hydraulically operated (double-acting) hydraulic circuit
- with transport lock: a push button locks the lift arm in all directions
- with float position for lift cylinder
- with hydraulic service brake
- with air-suspended, adjustable comfort seat with seatbelt, armrest, and extended backrest
- with 77Ah battery
- with battery main switch
- with anti-theft protection with access code (not certified)
- with rear counterweight integrated into the chassis
- with rear maneuvering coupling
- with halogen work light on the lift arm
- with cyclone air pre-filter
- with oil cooler
- with 3rd hydraulic circuit, mechanical double-acting

Optional equipment:
- with load moment control system (LMC)
- with 480/45-17 tires (162 cm outer width)
- with cab
incl. heating
incl. radio and speakers
incl. front and rear windshield wipers
incl. left and right side mirrors
- with
