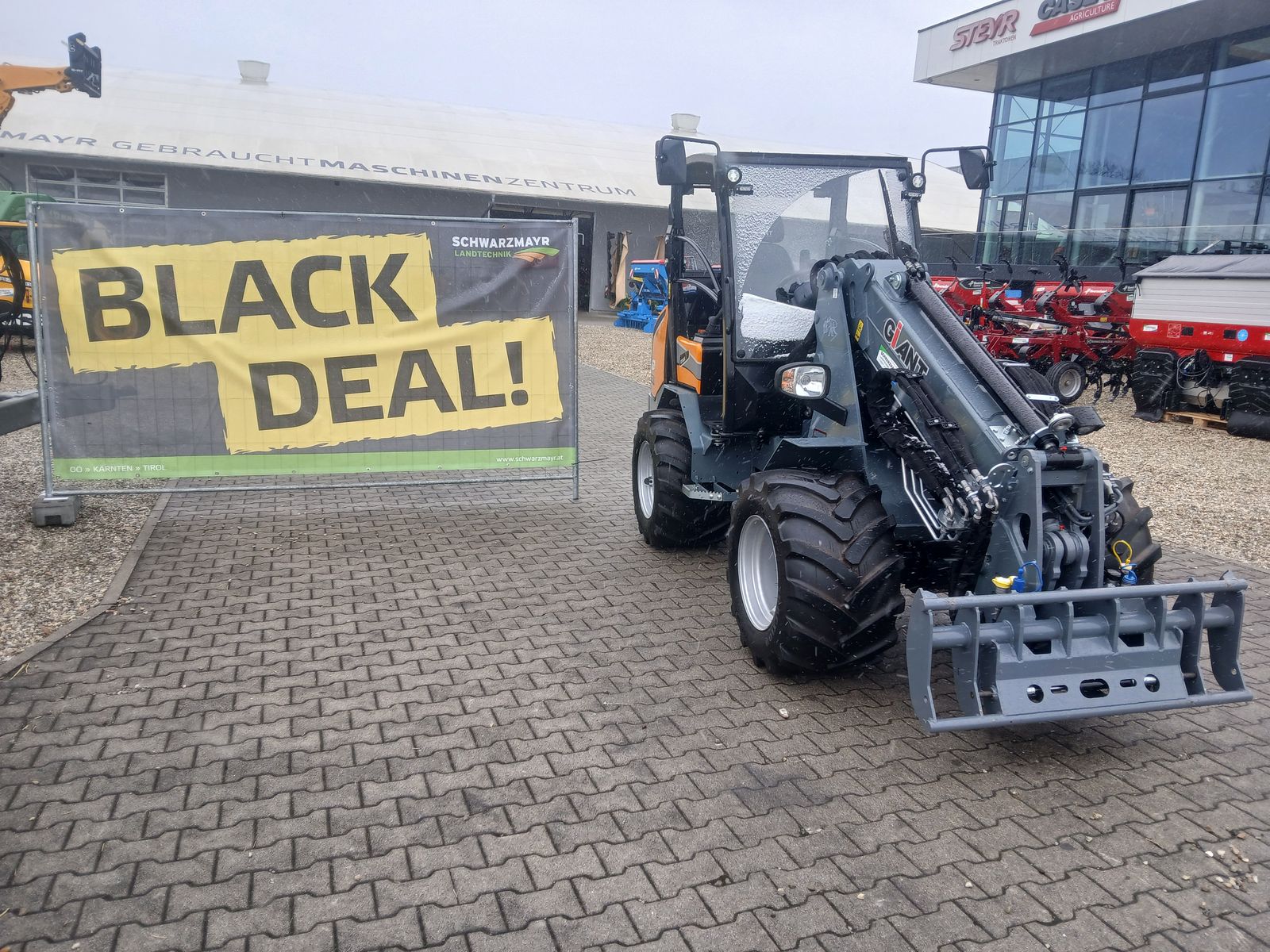

Giant G3500 TELE

No. 65904
G3500 TELE Farm Loader
- with a lift height of 4,312 mm measured at the machine's pivot point
- with a lifting capacity of approx. 2,500 kg without additional weight
- with Kubota V2403-CR-TE5B engine (4 cylinders) Stage V (DOC), diesel particulate filter (DPF)
- with engine power 66 hp / 48.5 kW
- with hydrostatic all-wheel drive
- with 14-ton planetary axles
- with electrically engageable 100% differential lock on both axles
- with travel hydraulics 112 l/min (450 bar)
- with working hydraulics 70 l/min (220 bar)
- with travel speed 0–10 km/h 0–30 km/h (with cruise control) measured with standard tires
- with hydraulically operated (double-acting) circuit
- with transport lock: a push button locks the lift arm in all directions
- with float position for lift cylinders
- with hydraulic service brake
- with ROPS/FOPS rollover protective structure, including safety doors (L+R)
- With air-suspended, adjustable comfort seat with seatbelt, armrest, and extended backrest
- With 77Ah battery
- With battery master switch
- With anti-theft protection via access code (not certified)
- With rear weight plate integrated into the chassis
- With rear maneuvering coupling
- With halogen work lights on the lift arm
- With cyclone air pre-filter
- With oil cooler
- With 3rd hydraulic circuit (mechanical, double-acting)
Optional equipment:
- With front windshield incl. windshield wipers
- With rear window
- With side mirrors
-
