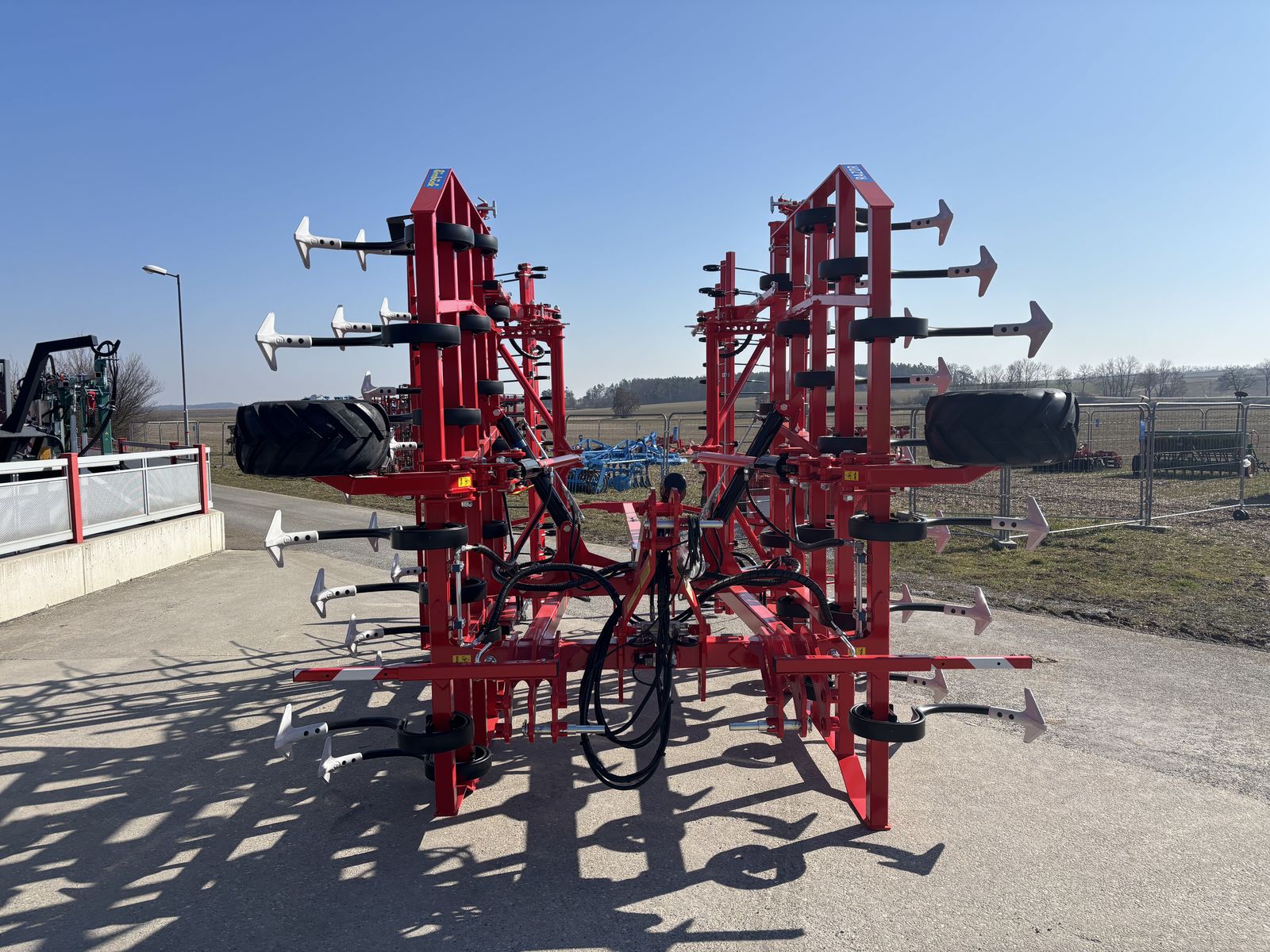

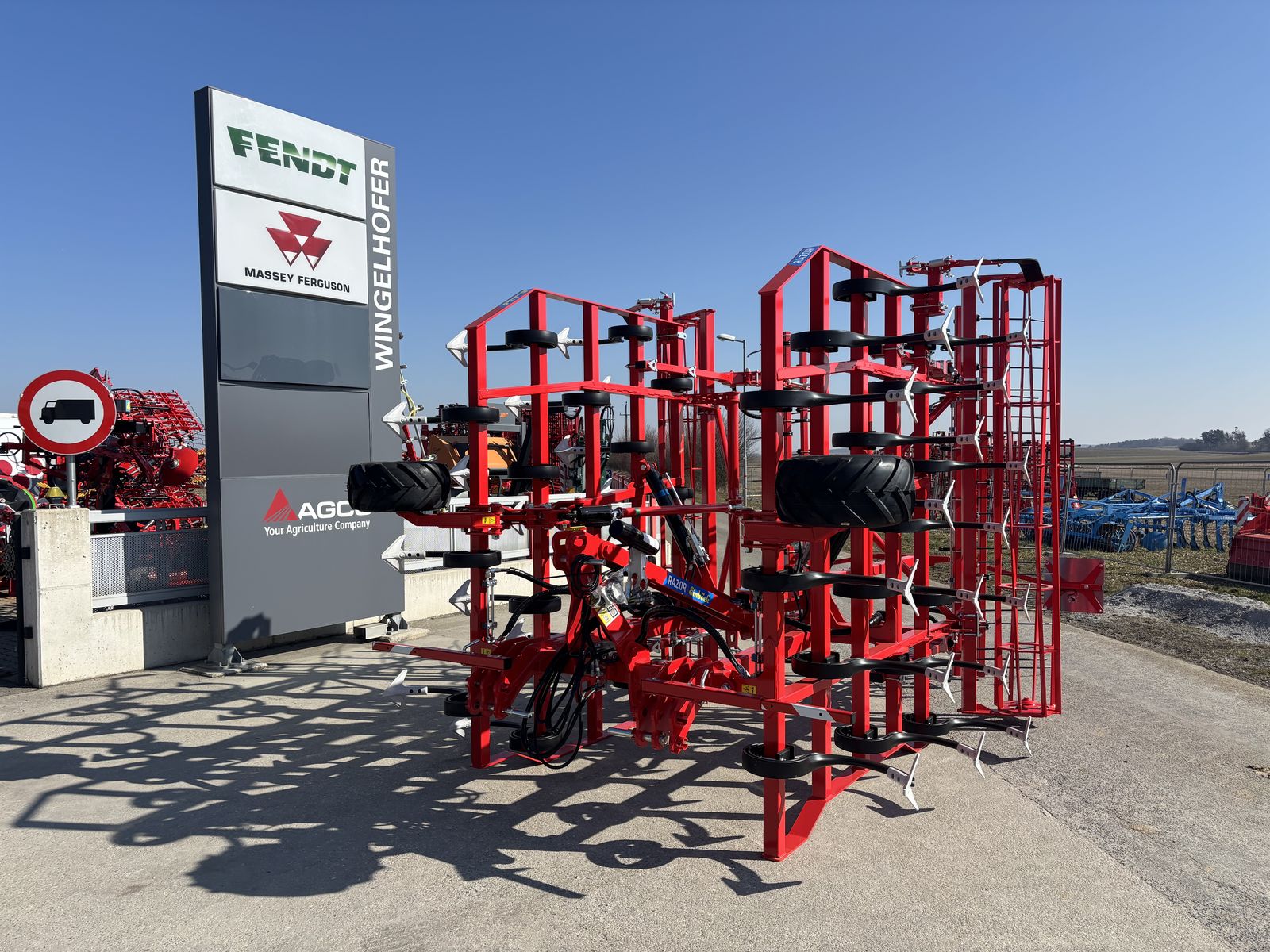

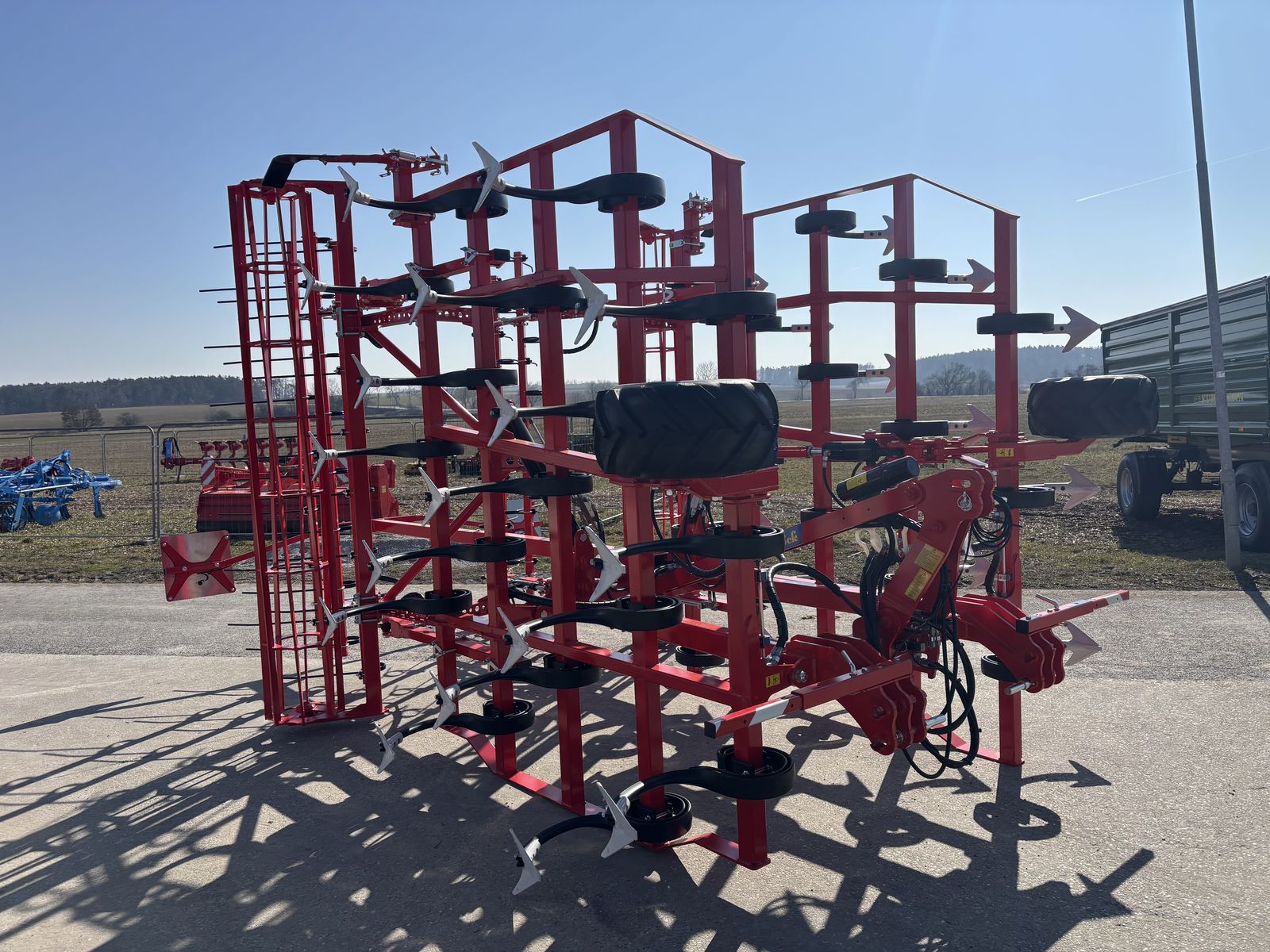

Einböck Flachgrubber Razor 500

Base frame with hydraulic H-folding mechanism featuring two cylinders (+1 DW)
Hydraulically adjustable trailing roller (+1 DW)
5-beam tube-in-tube frame construction
Tine spacing 15 cm (with 34 tines); beam spacing 50 cm
Working width: 5.10 m; Transport width: 2.93 m
Mounting category: II/ø28 & III/ø36
- Flat bar roller 400 mm
- 34 Hercules tines 70x12 with internal reinforcement spring and wedge guide
- 34 carbide

Base frame with hydraulic H-folding mechanism featuring two cylinders (+1 DW) Hydraulically adjustable trailing roller (+1 DW) 5-beam tube-in-tube frame construction Tine spacing 15 cm (with 34 tines); beam spacing 50 cm Working width: 5.10 m; Transport width: 2.93 m Mounting category: II/ø28 & III/ø36 - Flat bar roller 400 mm - 34 Hercules tines 70x12 with internal reinforcement spring and wedge guide - 34 carbide goosefoot coulters 220 mm - Front feeler wheels with agricultural tread profile 20x10.00-8 - Three-row trailing harrow with 12 mm tines, 12 cm tine spacing - Hydraulic adjustment of the harrow’s engagement angle - Hydraulic adjustment of the trailing harrow parallelogram - Left side leveller - Right side leveller - Electrically controlled valve for Razor combines two double-acting hydraulic connections (3-pin socket required) - LED lighting & warning signs at the rear

Base frame with hydraulic H-folding mechanism featuring two cylinders (+1 DW) Hydraulically adjustable trailing roller (+1 DW) 5-beam tube-in-tube frame construction Tine spacing 15 cm (with 34 tines); beam spacing 50 cm Working width: 5.10 m; Transport width: 2.93 m Mounting category: II/ø28 & III/ø36 - Flat bar roller 400 mm - 34 Hercules tines 70x12 with internal reinforcement spring and wedge guide - 34 carbide goosefoot coulters 220 mm - Front feeler wheels with agricultural tread profile 20x10.00-8 - Three-row trailing harrow with 12 mm tines, 12 cm tine spacing - Hydraulic adjustment of the harrow’s engagement angle - Hydraulic adjustment of the trailing harrow parallelogram - Left side leveller - Right side leveller - Electrically controlled valve for Razor combines two double-acting hydraulic connections (3-pin socket required) - LED lighting & warning signs at the rear
