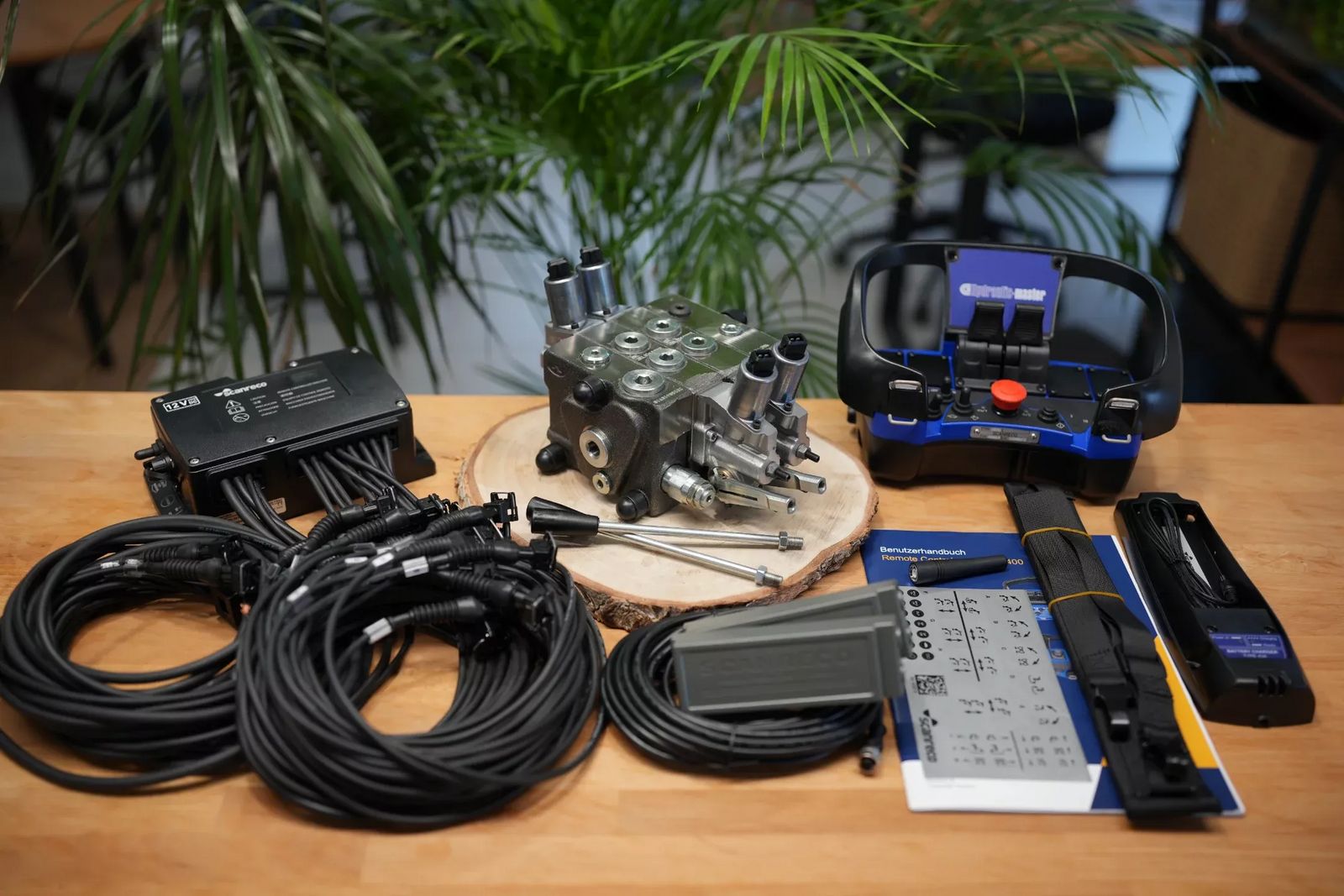

Cranab Walvoil DPX100 2 sections + Scanreco Mini G2B

Hydraulic Valve Walvoil DPX 100 12/24V with 2 Proportional Sections, Open/Closed Center and Additional Levers. The valve includes a post-compensation section.

Scanreco G2B Mini 2 pads 12/24V.

This kit is configured for unusual settings with 2 standard, double-way functions. If you require a different dedicated configuration, we can customize it to meet your needs, including variations in spools, voltage, the number of sections, anti-shock valves, connectors, etc. The relief valve can also be adjusted as required. Spool type and flow can be individually selected to suit your application. Please send us a diagram, and we can assist further.

The kit is designed for plug-and-play convenience. We handle everything from the plugs to the software configuration.

We provide technical support and are readily available via email, whatsup and telephone.

Feel free to contact us at - or - for any inquiries or assistance.

After placing an order, the flow and pressure can be fully adapted to the machine according to the customer's specific requirements.

--------------------------------------------------------------------------------------------------------------------------------------------------------------

Hydraulic, sectional valve Walvoil DPX 100 with compensation, full proportional

Technical specifications of default configuration:

Inlet section: 32GPM 120l/min - Pmax 300 bar 4351psi Power supply port: 3/4" BPS, tank return port: 3/4" BPS

1st 40 L/min 10GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

2nd 60 L/min 21GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

Outlet section: with the possibility of combining valves, with bleed
