Förderschnecke T – 403 PP Ø 150mm

VERTICAL AND HORIZONTAL SCREW CONVEYOR UNIT T – 403 PP Ø 150 mm CAPACITY 15 - 22 t/h

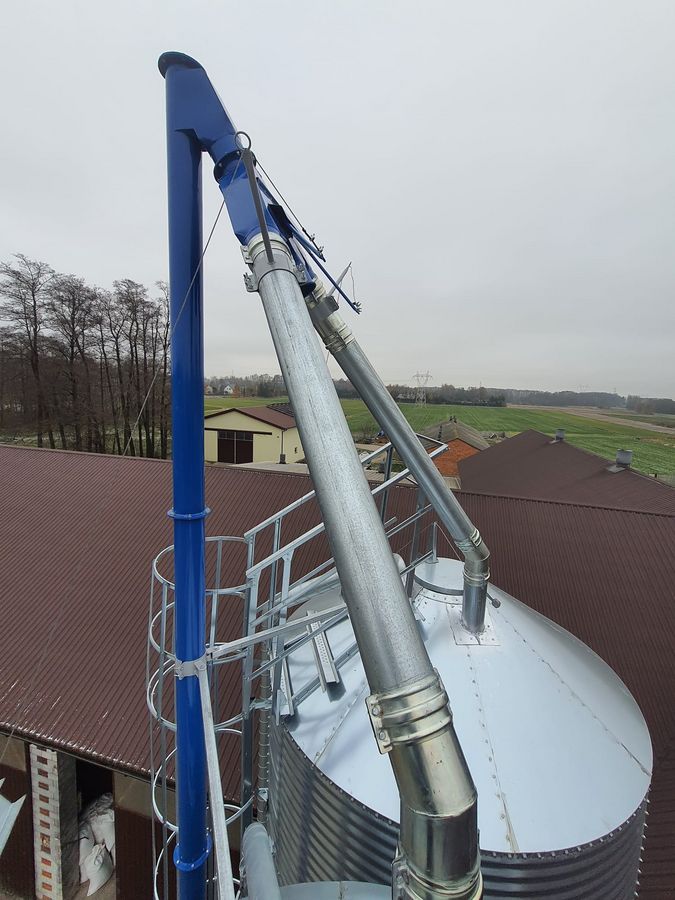

The vertical screw conveyor can transport material from 4.2 to 15.2 m depending on the motor power; the horizontal feed screw can be extended by 1 meter upon request. This unit is ideal for loading large grain and feed silos, even when cleaning operations require speed. It can also be used for transporting concentrated feed, including granulated feed, as properly selected screw strokes and profiles prevent damage to the granules. This unique design, combined with a small pipe cross-section (Ø 150 mm), achieves high efficiency from 16 to 26 t/h. The motor power depends on the height of the unit and is selected so that the vertical conveyor has the same capacity at each level.

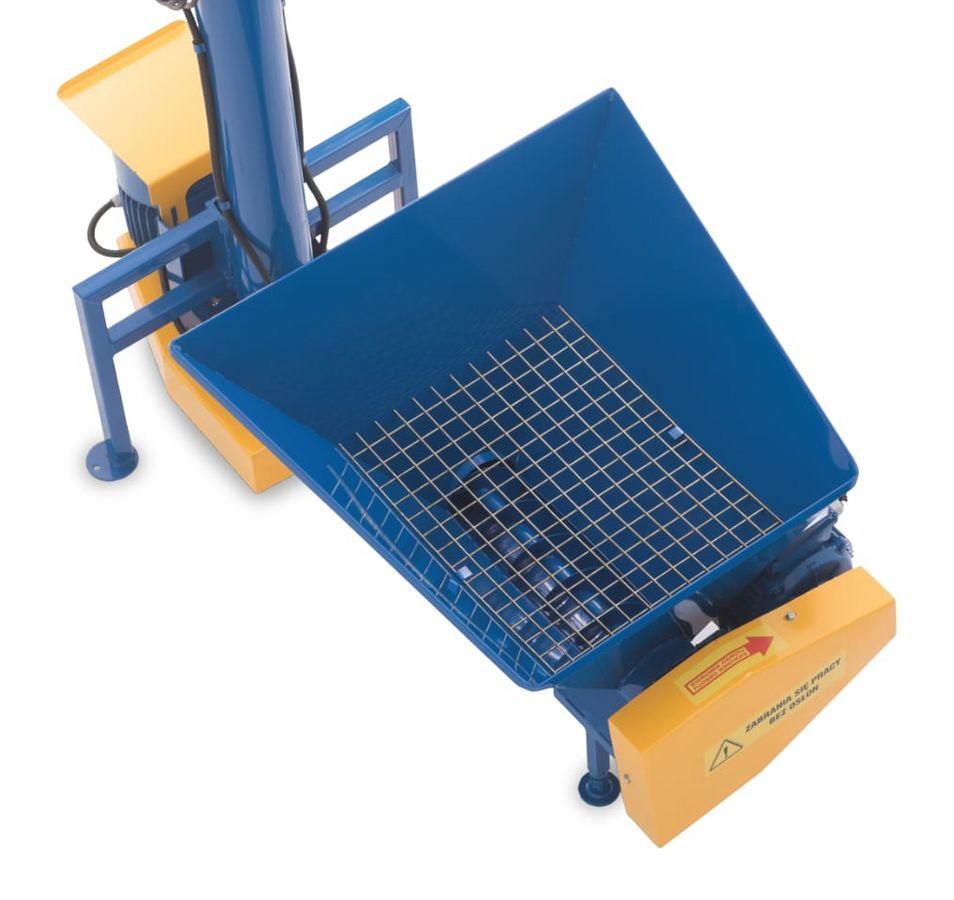

VERTICAL AND HORIZONTAL SCREW CONVEYOR UNIT T – 403 PP Ø 150 mm CAPACITY 15 - 22 t/h The vertical screw conveyor can transport material from 4.2 to 15.2 m depending on the motor power; the horizontal feed screw can be extended by 1 meter upon request. This unit is ideal for loading large grain and feed silos, even when cleaning operations require speed. It can also be used for transporting concentrated feed, including granulated feed, as properly selected screw strokes and profiles prevent damage to the granules. This unique design, combined with a small pipe cross-section (Ø 150 mm), achieves high efficiency from 16 to 26 t/h. The motor power depends on the height of the unit and is selected so that the vertical conveyor has the same capacity at each level. The conveyor has a single discharge as standard. However, it can be equipped with a 2-, 3-, and 5-way distributor, allowing the feeding of multiple silos. Standard equipment includes: Feed hopper with a capacity of approximately 70 l and dimensions: 0.8 x 0.8 x 0.9 m; The height of the upper trough edge is 0.9 m, which makes unloading through the trailer's inspection hatch very easy. In many cases, customers lower the height of the hopper conveyor to ground level to facilitate unloading. Optional equipment: Circular outlet for connecting downpipes or distributors. Galvanized version surcharge of 15%. Other basket capacities available upon request, with a height limit of 0.8 m. Two-way distributors, triple distributors, quintuple distributors, downpipes, bends. 15°, 30°, 45°, Clamps and pipes Price example in the ad. Vertical-horizontal auger, 6.2 meters high, power: 3.0 kW + 2.2 kW - 1 meter feeder!
