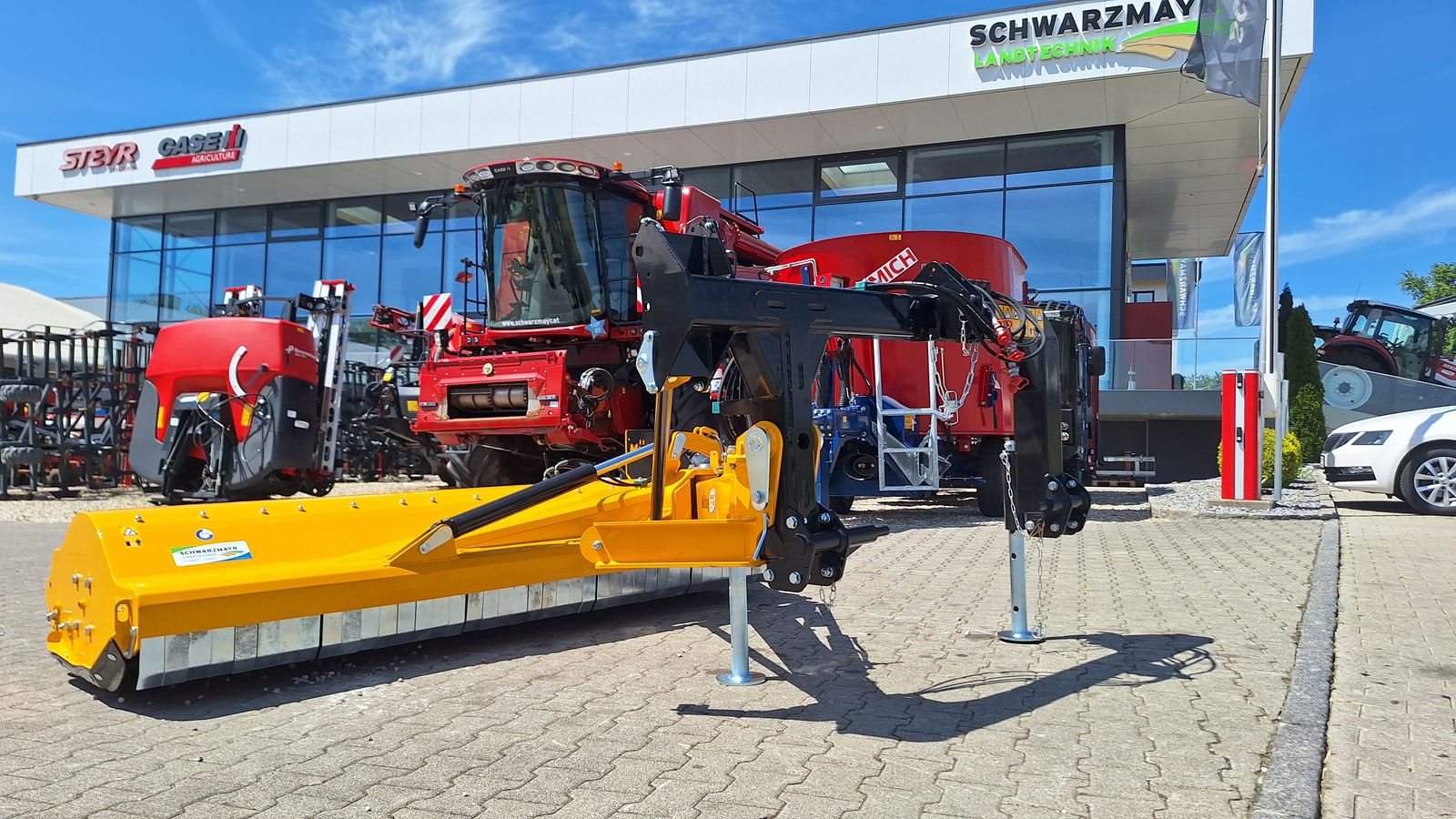

Müthing MU-LS 250 VARIO

No. 74493
Müthing MU-LS 250 Vario
Technical Specifications:
Working width 250 cm
Overall width 345 cm
Max. tractor horsepower at 540 rpm: 130 PS
Weight: 950 kg
M-Hammer: 22 units
Standard equipment
- Made of fine-grained QSt/E steel for rear mounting with a wide Category 2 three-point hitch
- Hydraulic side shift via swivel arm, shift range 175 cm
- Total working range up to 425 cm (see drawing / table)
- Working range from 90° upward to 60° downward
- Gearbox with freewheel for 540 rpm
- V-belt guard with inspection opening
- Patented automatic start-up safety device via mechanically operated linkage
- Transport lock in 90° position with shut-off valve
- Highly heat-treated M-hammer flails, forged from special steel
- Smooth-running rotor with specially shaped, spirally arranged tool holders
- Screw-on short-chipping bar system: “Shark Fin” Müthing patent
- Large support
