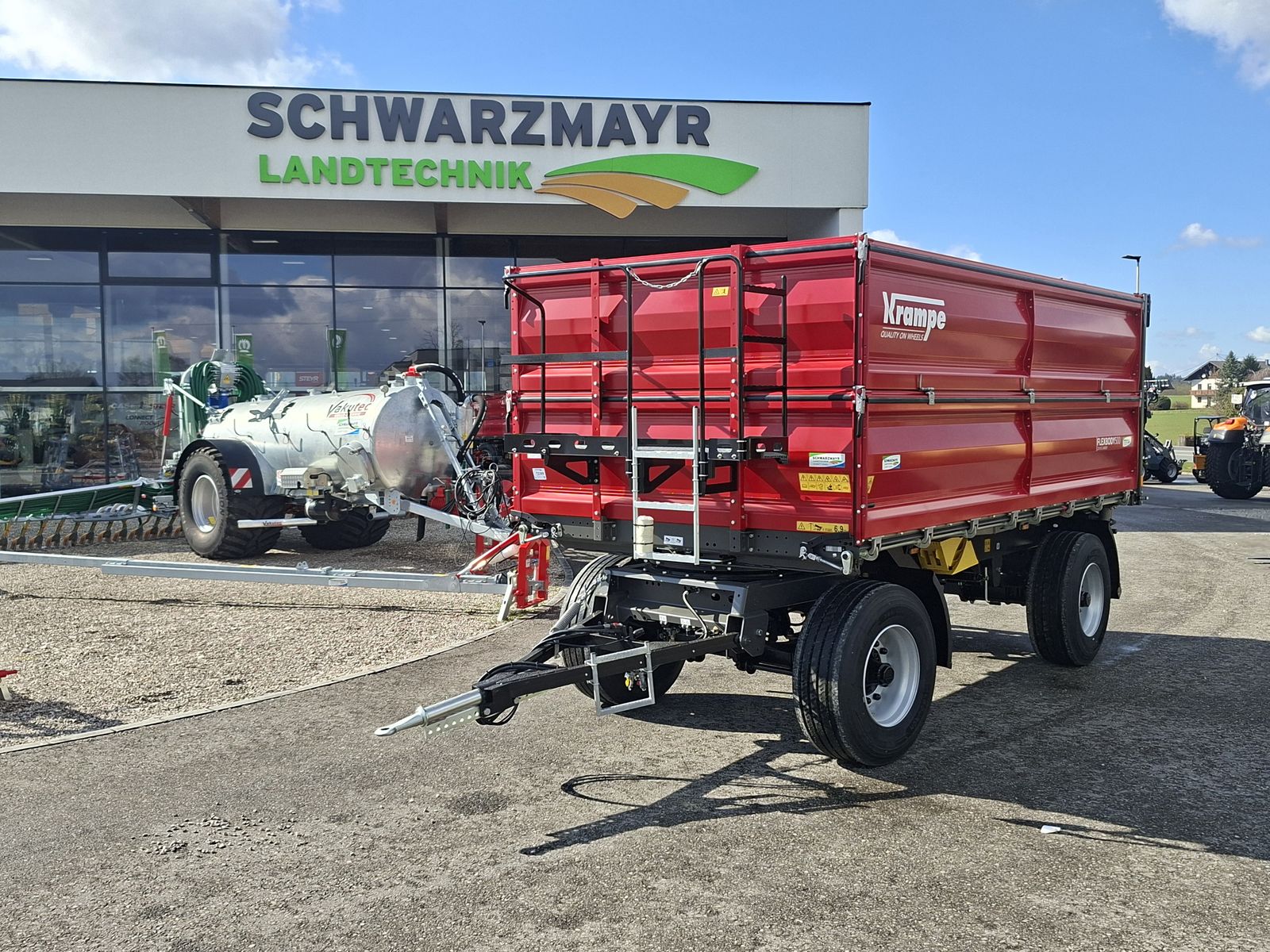

Krampe ZDK 18-500 Carrier

No. 73495
KRAMPE Two-Axle Three-Side Tipper (Rotating Turret Truck)
- Curb weight with side walls 80 + 80 cm: approx. 4,620 kg (depending on equipment)
- Technical payload (internal use) approx. 15,300 kg
- Chassis made of I-beams, fully steerable, weight-optimized, robot-welded,
low-maintenance parabolic springs, adjustable for low ride height with small
tire diameters, e.g., tire size 385/65 R 22.5
- Three-way tipper body, platform size with interior dimensions 5.00 x 2.42 m
- Side walls on the right, left, and rear mounted on upper swing bearings, central locking at the bottom
- The steel side walls are versatile; side wall heights 60 or 80 cm
- Side walls with the patented Krampe-Groove system ensure maximum flexibility

Optional equipment:
- Tires: 385/65 R 22.5 Albourgh truck tread
- Y-shaped drawbar, longitudinally adjustable
- Automatic trailer hitch
Automatic trailer hitch, 7-pin socket at the rear of the vehicle
Maximum allowable trailer load up to 18 t, maximum allowable drawbar load 950 kg, G 140 mounting pattern
- Rear hydraulic oil connection
Rear oil connection with three-way valve, for switching from the telescopic cylinder
to the oil connection; eliminates the need for a control unit on the tractor
- Compressed air connection
Compressed air connection for a second trailer, two-line system

- Tailgate with discharge slide
Tailgate, swing/tilting, 80 cm high, discharge slide 46 x 34 cm (WxH) with plastic slide rails
Dosing lever can be mounted on the right or left; perforated strips for insertable chutes
- Sidewall set 80 cm
2nd steel sidewall extension,
