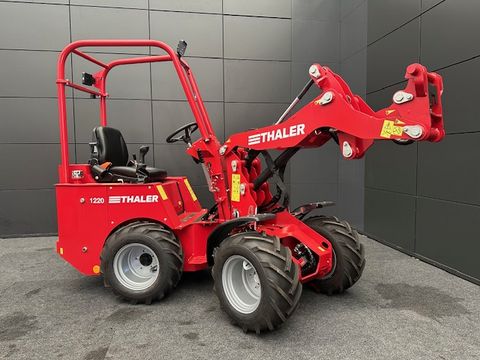

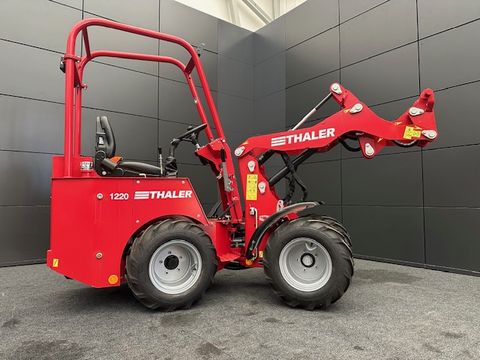

Thaler Hoflader 1220 19PS 750kg Hubkraft

Thaler yard loader 1220

- 3-cylinder Yanmar diesel engine
- water-cooled, 14,6kW/19hp 3.000 rpm
- 0-16km/h
- hydrostatic drive with automatic control and multifunction lever
- 1-speed with inching pedal
- Parking brake: drum brake acting on the rear axle
- Single lever control with float position for all functions
- Working hydraulics: approx. 33l
- 3rd control circuit at the front with cylinder function (DN12)
- Inching function and detent for mechanical version
- Road block for cross control and 3rd control circuit in the mechanical version
- Forward and reverse direction change via toggle switch in the joystick
- Oil-water combination cooler
- Fully hydraulic articulated pendulum steering
-

Thaler yard loader 1220 - 3-cylinder Yanmar diesel engine - water-cooled, 14,6kW/19hp 3.000 rpm - 0-16km/h - hydrostatic drive with automatic control and multifunction lever - 1-speed with inching pedal - Parking brake: drum brake acting on the rear axle - Single lever control with float position for all functions - Working hydraulics: approx. 33l - 3rd control circuit at the front with cylinder function (DN12) - Inching function and detent for mechanical version - Road block for cross control and 3rd control circuit in the mechanical version - Forward and reverse direction change via toggle switch in the joystick - Oil-water combination cooler - Fully hydraulic articulated pendulum steering - Hydraulic protection hoses - Engine hood can be tilted backwards - Steering column with hour meter - Driver's seat with safety belt - 2-LED work lights on Fops-Rops (1x front and 1x rear) - Diesel and hydraulic tank each 25ltr - Lifting capacity 750kg - Tipping load bucket straight 600kg, bent (45°) 280kg - Unladen weight 1,010kg, operating weight 1,180kg - Wide tires 23x10.5x12 BKT (machine width approx. 1.06m, machine height approx. 1.99m) The Mühlbacher Maschinen sales team will be happy to show you the loader and would be pleased to arrange an appointment for a viewing at our premises. Please also visit our 1,500m² exhibition hall!

Thaler yard loader 1220 - 3-cylinder Yanmar diesel engine - water-cooled, 14,6kW/19hp 3.000 rpm - 0-16km/h - hydrostatic drive with automatic control and multifunction lever - 1-speed with inching pedal - Parking brake: drum brake acting on the rear axle - Single lever control with float position for all functions - Working hydraulics: approx. 33l - 3rd control circuit at the front with cylinder function (DN12) - Inching function and detent for mechanical version - Road block for cross control and 3rd control circuit in the mechanical version - Forward and reverse direction change via toggle switch in the joystick - Oil-water combination cooler - Fully hydraulic articulated pendulum steering - Hydraulic protection hoses - Engine hood can be tilted backwards - Steering column with hour meter - Driver's seat with safety belt - 2-LED work lights on Fops-Rops (1x front and 1x rear) - Diesel and hydraulic tank each 25ltr - Lifting capacity 750kg - Tipping load bucket straight 600kg, bent (45°) 280kg - Unladen weight 1,010kg, operating weight 1,180kg - Wide tires 23x10.5x12 BKT (machine width approx. 1.06m, machine height approx. 1.99m) The Mühlbacher Maschinen sales team will be happy to show you the loader and would be pleased to arrange an appointment for a viewing at our premises. Please also visit our 1,500m² exhibition hall!
