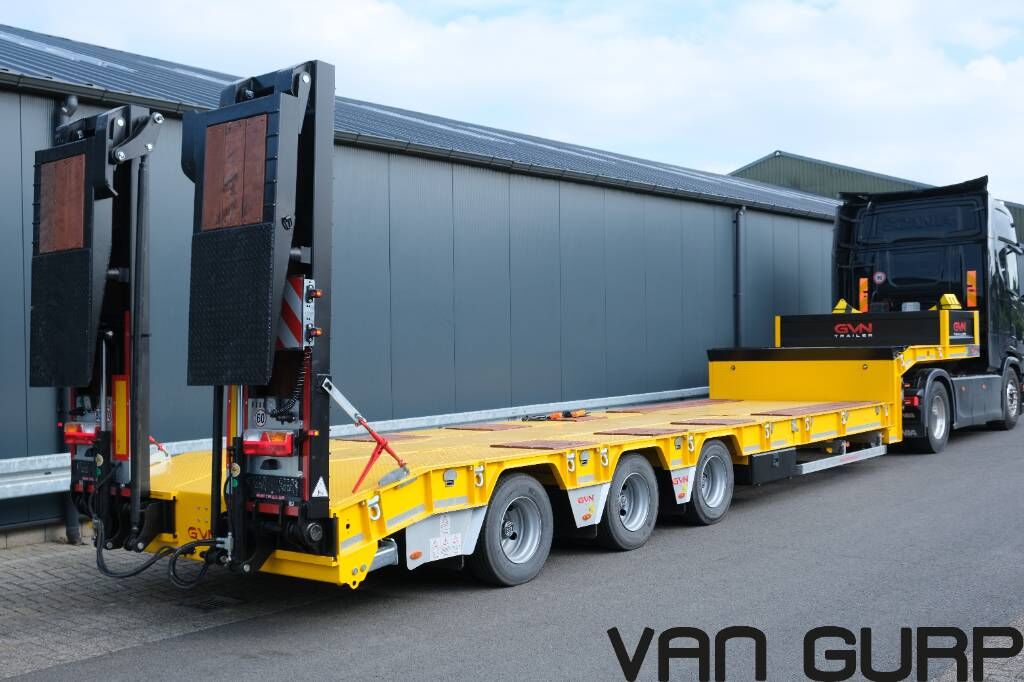

GVN dieplader semi lowloader tieflader (lifting

Brand new trailer including COC documents with:
* hydraulically width-adjustable ramps
* Hydraulic lifting bed in front of lading area
* Lifting axle (first axle)
* 3rd Axle self steering
* Built-in tubes for widening low loader

Number of axles: 3 axles 12 wheels
Number and position of axles with twin wheels: All axles
Steered axles: 3, axle

Wheelbase: 9940mm
length: 13300mm
width: 2550 mm
Height: 3000mm
Distance between the centre of the coupling device and the rear end of the vehicle: 11740mm
Length of the loading area: 9300mm

Mass in running order: 10000kg
Technical permissible maximum laden mass: 58000kg
technical permissible mass on each axle: 12000kg
technically permissible mass on each axle group: 36000kg

intended registration / in service maximum permissible laden mass on each axle: 8000kg
intended registration / in service maximum permissible laden mass on each axle group: 24000kg
Technical permissible maximum static mass on the coupling point of a semi-trailer or centre-axle trailer: 22000kg

Position of lift axle: 1st axle
Axles fitted with air suspension or equivalent: Yes, air suspension
Tyre / wheel combination: All, 235/75R17.5 "

Trailer brake connection: WABCO T EBS-E
