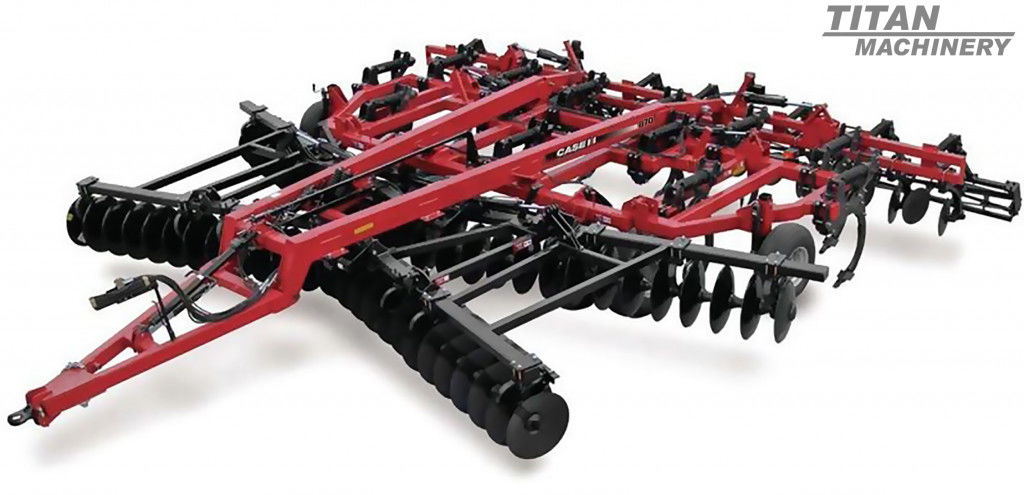

Ecolo Tiger 875 - NEW

Approximate with Disk Gangs, S /R Shanks and Reels -  20,000 lb. (9 070 kg) Main Frame/ Overall Length with Crumbler -  33 ft. 4 in. (10.19 m) Working Width -  18 ft. (5.49 m) Transport Width -  16 ft. 9 in. (5.10 m) PTO Horsepower per Foot 18 to 20 Hp (44 to 49 kW/m) PTO Horsepower per Shank 35 to 40 Hp (86 to 98 kW/m) Operating Speed 5 to 7 mph (8 to 11 km/h) recommended Blade Protection Cushion mounted blades plus a frame that lifts against a spring

Approximate with Disk Gangs, S /R Shanks and Reels -  20,000 lb. (9 070 kg) Main Frame/ Overall Length with Crumbler -  33 ft. 4 in. (10.19 m) Working Width -  18 ft. (5.49 m) Transport Width -  16 ft. 9 in. (5.10 m) PTO Horsepower per Foot 18 to 20 Hp (44 to 49 kW/m) PTO Horsepower per Shank 35 to 40 Hp (86 to 98 kW/m) Operating Speed 5 to 7 mph (8 to 11 km/h) recommended Blade Protection Cushion mounted blades plus a frame that lifts against a spring loaded relief that automatically resets when obstruction is cleared Individual Mounted Blades 1 C-hanger per blade (Optional C-hanger flex protection) Gang Mounted Blades Multiple C-hangers per gang with scrapers Shear Bolt Shank Protection 24 in. (610 mm) effective spacing, ideal for rock-free fields. (Optional reversible shank shin available) Auto-Reset Shank Protection 24 in. (610 mm) effective spacing, ideal for rocky conditions. (Optional reversible shank shin available) Auto-Reset 13 in. (330 mm) of trip clearance, hardened pins and composite bushings Auto-Reset and Shear Bolt 5/8 in. (16 mm) diameter grade 5 shear bolt
