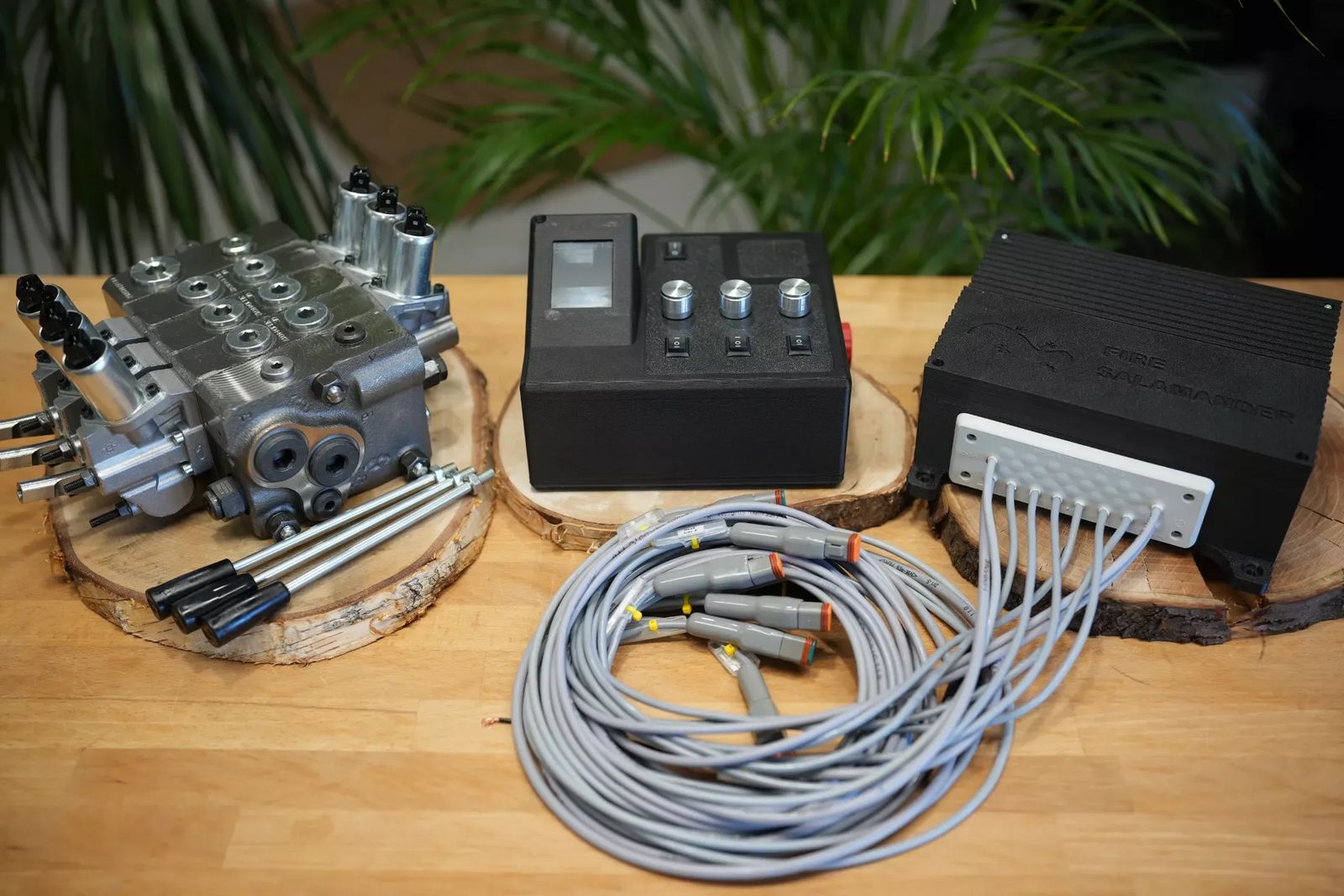

Fire Salamander Medium with 3 potentiometers

Model "Medium" is recommended for application up to 8 proportional functions / up to 12 on/off functions

3 potentiometers + 3 switches forward/0/backward

Hydraulic Valve Walvoil DPX 100 12/24V with 3 Proportional Sections, Open/Closed Center and Additional Levers.

--

Fire Salamander – designed by Hydraulic Master!

Perfect solution for:

-up to 8 proportional functions

-up to 12 on/off functions

-various control types, including joysticks, buttons, knobs, manipulators, and switches

-intuitive touchscreen display

-user-friendly menu with access to settings

-10-bit PCU board

-PETG carbon cover

HMI Size: 2.4″ Resolution: 320 × 240

Brightness: 300 nits , Touch Panel: Resistive , Color Depth: 65,536

Flash Memory: 4 MB , SRAM: 3584 B

MCU Clock: 64 MHz , Interface: TTL ,CE and RoHS Compliant

Number of GPIOs: 8

--

Functions:

MAX SPEED

You can easily limit the maximum speed for each individual movement.
MIN. SPEED

Set your preferred starting speed for specific functions.
DEADZONE

Adjust the point at which the joystick begins to respond.
FLOATS

Easily enable or disable floating functions.
OTHERS

Custom solutions tailored specifically to your needs.
RAMPS

Easily modify ramp-up and ramp-down times for each
