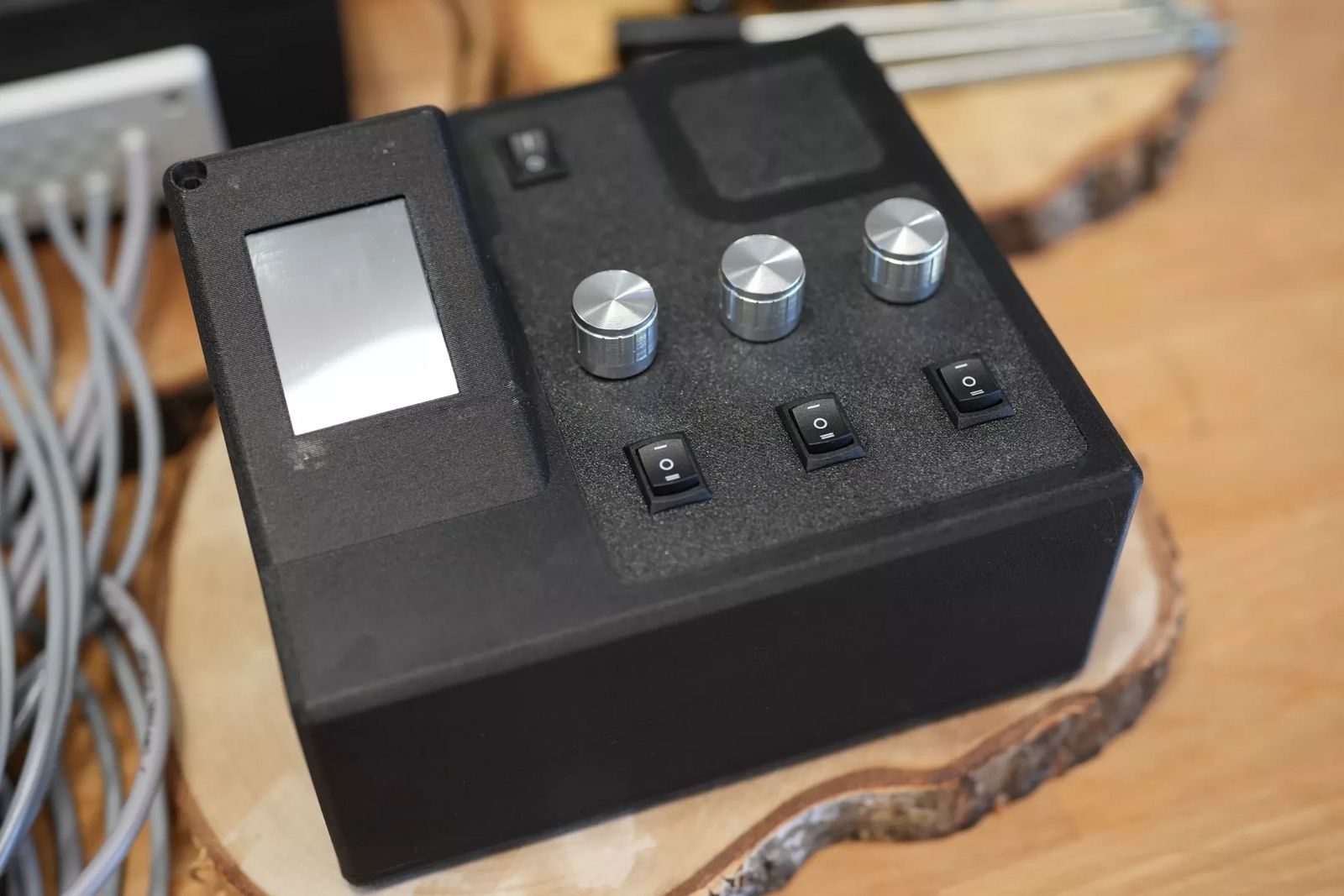

Fire Salamander Medium with 3 potentiometers

Model "Medium" is recommended for application up to 8 proportional functions / up to 12 on/off functions

3 potentiometers + 3 switches forward/0/backward

--

Fire Salamander – designed by Hydraulic Master!

Perfect solution for:

-up to 8 proportional functions

-up to 12 on/off functions

-various control types, including joysticks, buttons, knobs, manipulators, and switches

-intuitive touchscreen display

-user-friendly menu with access to settings

-10-bit PCU board

-PETG carbon cover

HMI Size: 2.4″ Resolution: 320 × 240

Brightness: 300 nits , Touch Panel: Resistive , Color Depth: 65,536

Flash Memory: 4 MB , SRAM: 3584 B

MCU Clock: 64 MHz , Interface: TTL ,CE and RoHS Compliant

Number of GPIOs: 8

--

Functions:

MAX SPEED

You can easily limit the maximum speed for each
