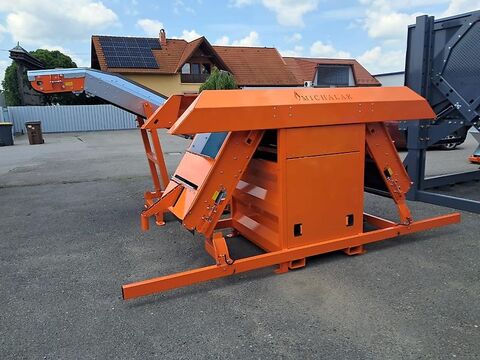

NSM 120.160 Box filler

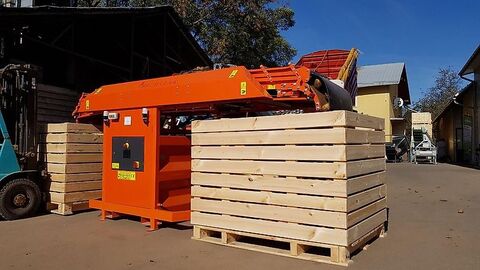

The NSM 120.160 is designed for the automatic filling of box pallets measuring 1200-1600 × 1200 mm, with a maximum height of 1200 mm. The filling process initiates by lowering the conveyor belt to the bottom of the box.

An integrated sensor system enables automatic control of the belt position, ensuring uniform product distribution and a consistent drop height throughout the entire filling cycle.

The filling unit is equipped with adjustable operating parameters, including:

Filling speed
Belt speed
Speed and range of vertical movement (belt raising/lowering)
An automatic product layer thickness sensor monitors the current fill level of the pallet boxes, allowing for precise material dosing. Machine control is managed via a touch panel, which facilitates the configuration of operating parameters and monitoring of current operational data. The machine boasts a capacity of 20 box pallets per hour.

The SH32 65x400 conveyor belt is optionally available.

NSM 160.240 Automatic Box Pallet Filler
Michalak also offers the NSM 160.240 filler, which is designed for the automatic filling of crates measuring 1600-2400 mm × 1200 mm, with a maximum height of 1200 mm.

Standard Equipment:

Stepless control of filling speed
Smooth adjustment for raising/lowering the belt
Automatic product layer thickness sensor
Painted construction
Intuitive machine control via touch panel
Optional Equipment:

Weight-based dosing for two stations

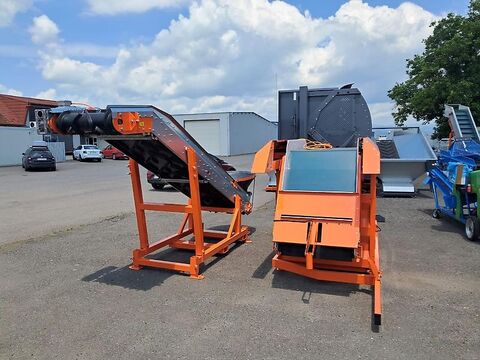

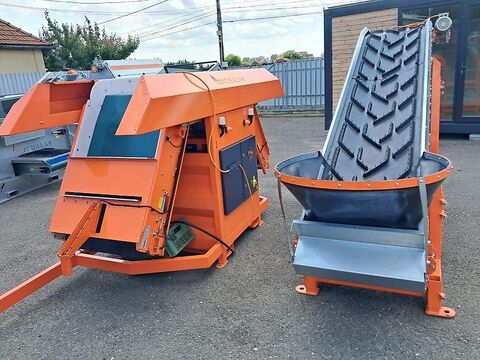

SH32 65x400 conveyor belt, feeding the NSM filler
Technical Specifications:

Dimensions (H/W/L): 278/120/230 cm
Capacity: 20 box pallets/hour
Weight: 600 kg
Installed Power: 2 kW/10A
Power Supply: 3x400V+N+PE, Connector: 5x32A
