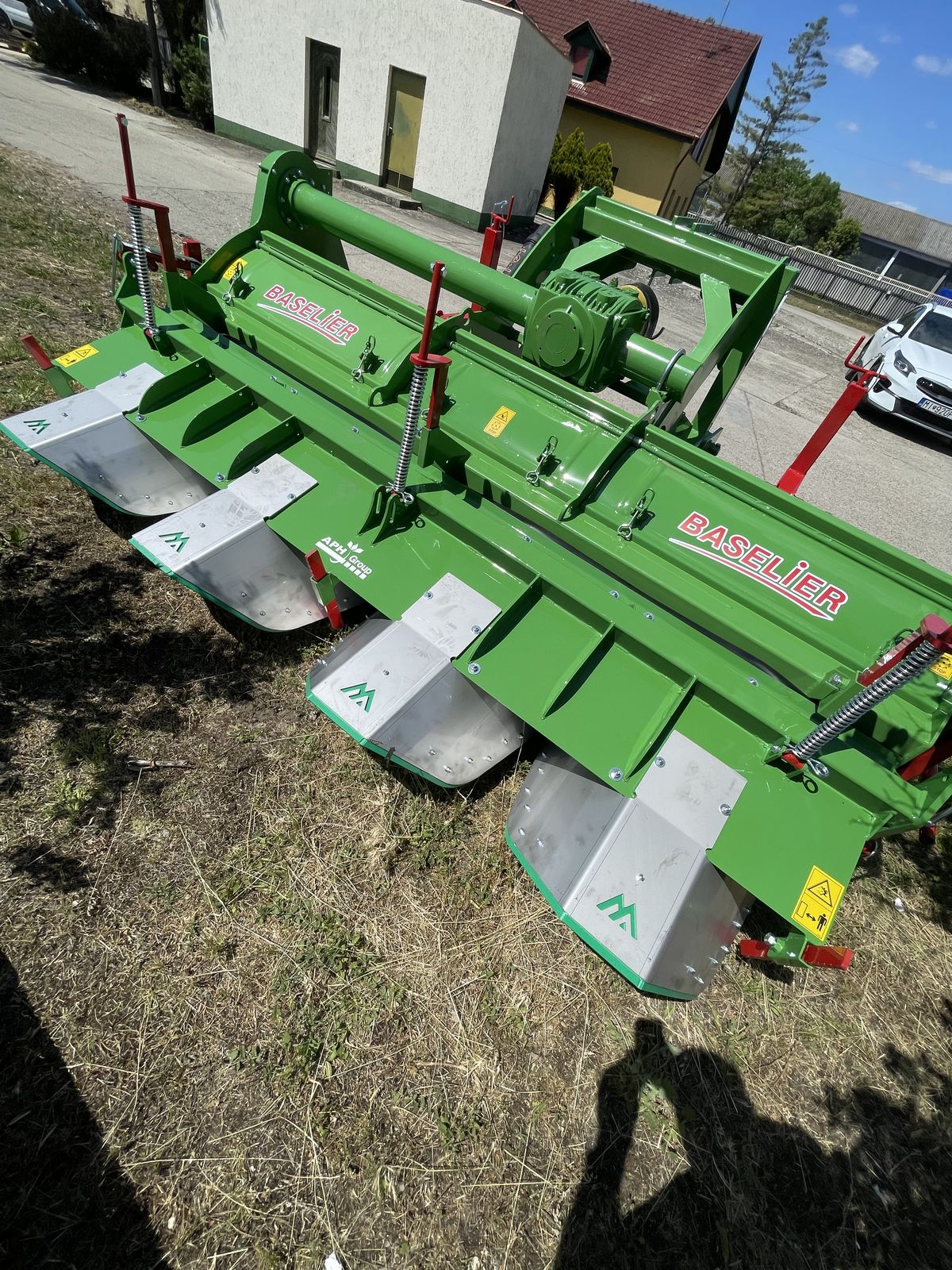

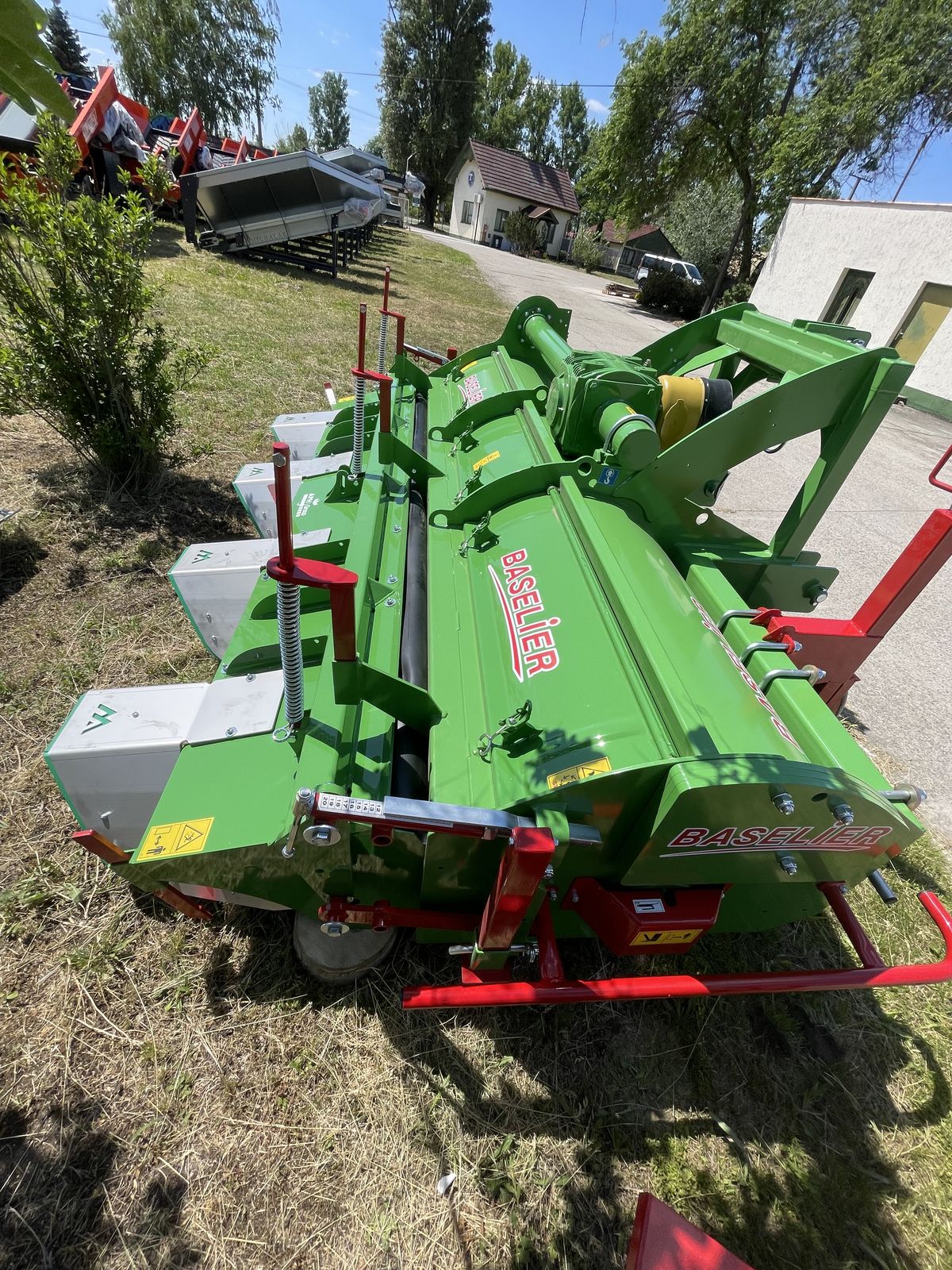

BASELIER 4FK310 Ridge Hiller

The Baselier 4FK310 is a robust, PTO-driven rotary ridging cultivator designed for creating well-shaped and compressed ridges, particularly for potatoes and carrots.

Key Features:

Purpose: Primarily for rotary ridging of potatoes and forming carrot ridges. It can also be used for full-width soil cultivation and bed preparation when configured with the right options.
Rows: Typically a 4-row machine with a row distance of 75 cm, but potentially adaptable to other row configurations.
PTO Gearbox: Equipped with a 1000 rpm PTO gearbox.

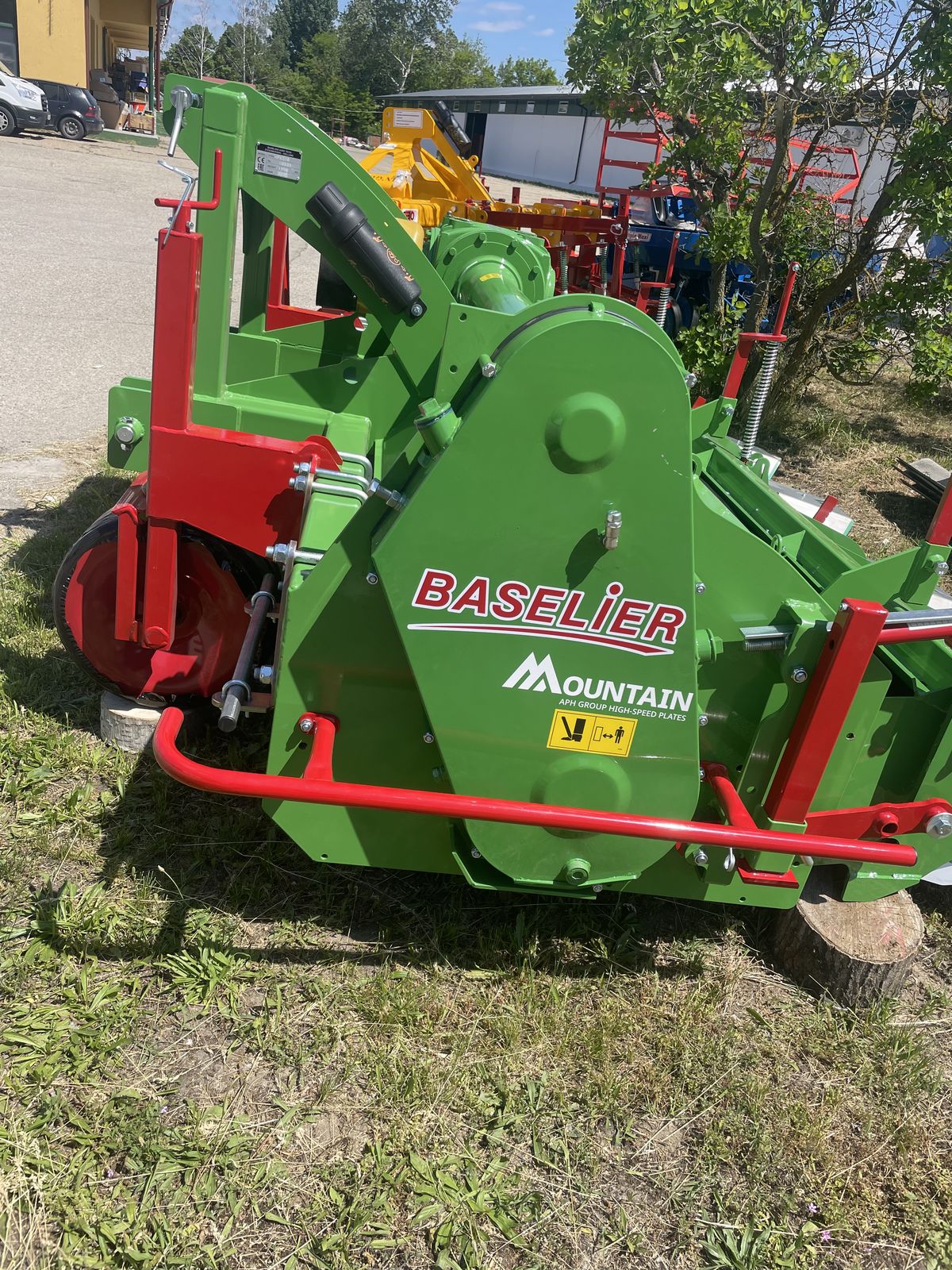

Drive: Features a chain drive system, often on one side. Some models like the 4FKBW 310 have a drive on both sides without a middle bearing.

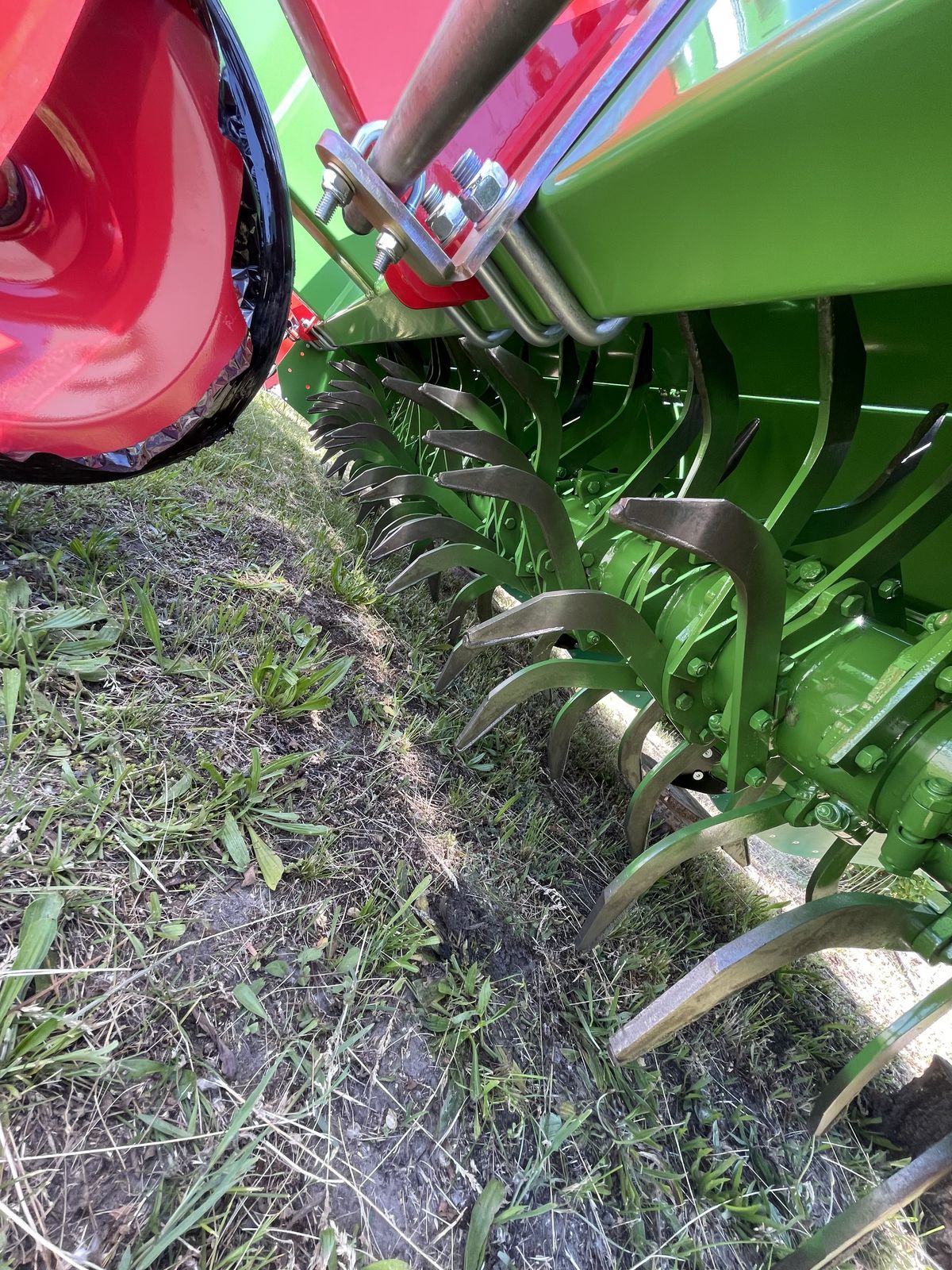

Rotor Shaft: Operates at around 360 RPM with a diameter of 75 cm. It uses welded hook tines mounted on tine clamps.
Adjustments: Offers adjustable working depth (up to 10 cm) via spindle adjustment and adjustable pushing power on top of the ridges.

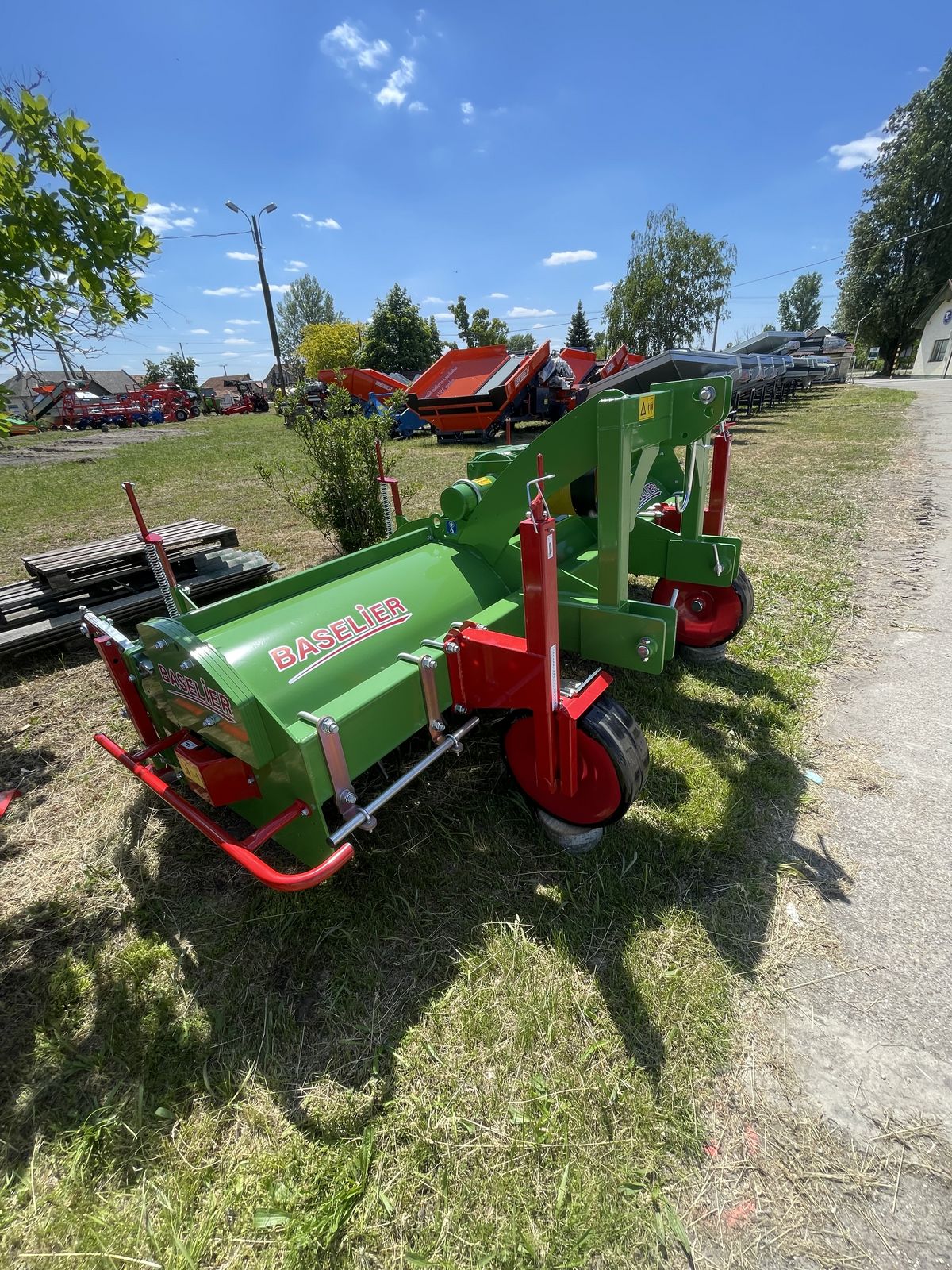

Depth Control: Typically includes adjustable depth-control steel wheels.
Ridging Hood: Features an adjustable ridging hood often with a parallelogram and cover plates for shaping the ridges. Options for different row widths and even small row configurations for seed potatoes exist. Some hoods have high-speed plates and plastic or stainless steel inner plates.
Power Requirement: Generally requires a tractor in the range of 110-175 hp (80-125 kW), with a maximum power capacity around 191 kW (260 hp) for some models.
Weight: Approximately 1300 - 1500 kg.
Capacity: Can achieve a capacity of up to 1.2 hectares per hour.
